Body - Interior & Exterior (2 Of 2): Hood: Installation

Courtesy of CHRYSLER GROUP, LLC

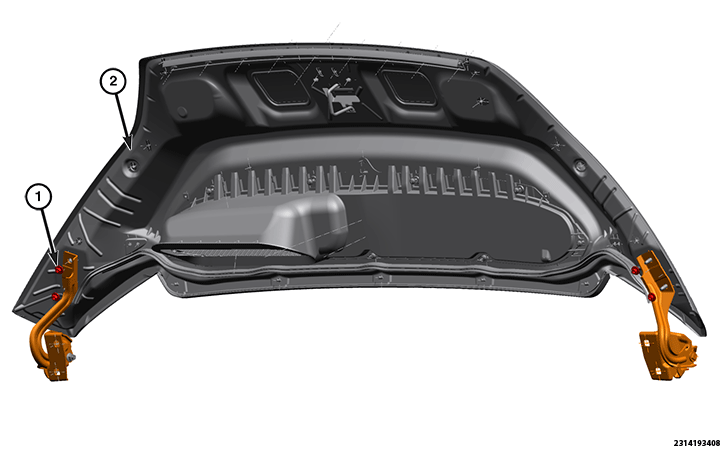

With the aid of a helper, position the hood (2) onto the hinges.
Loosely install the nuts (1).
Align hinges with installation reference marks made previously and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
CAUTION:
Prior to fully closing the hood, verify that the striker and latch are in alignment.
If required, adjust the hood to the correct position. Refer to GAP AND FLUSH, SPECIFICATIONS .
