Cable, Hood Release: Installation

Courtesy of CHRYSLER GROUP, LLC

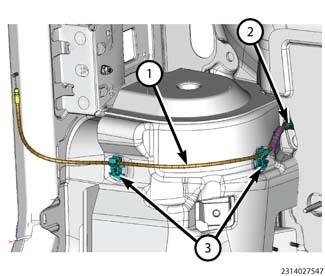

From the front of vehicle push the hood release cable (1) through the hole in the dash panel and seat the grommet (2) fully.
Insert the hood release cable into the retaining clips (3).

Courtesy of CHRYSLER GROUP, LLC
Insert the hood release cable into the housing (2) and connect the hood release cable to the lever (1).

Courtesy of CHRYSLER GROUP, LLC
Position hood release handle on the instrument panel then insert fastener (1) and tighten securely.

Courtesy of CHRYSLER GROUP, LLC

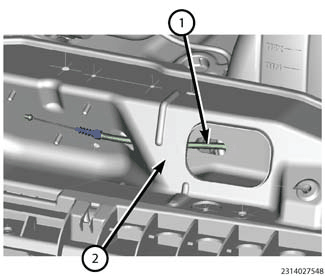

Route hood release cable (1) as noted previously then through the upper radiator crossmember (2) as shown in illustration.
Install the hood latch. Refer to LATCH, HOOD, INSTALLATION .
