Latch, Front: Removal

GC0160689Courtesy of CHRYSLER GROUP, LLC
  1. Open sliding door.
  2. Remove the door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

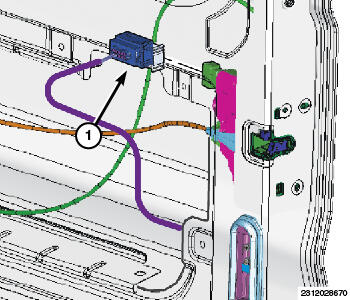

  3. Disconnect the electrical connector (1).
    GC0160537Courtesy of CHRYSLER GROUP, LLC

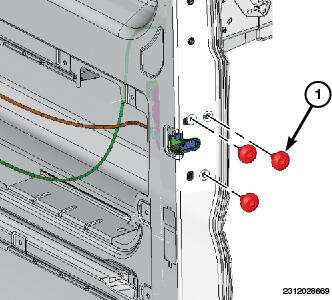

  4. Remove latch mounting bolts (1).
    GC0160732Courtesy of CHRYSLER GROUP, LLC

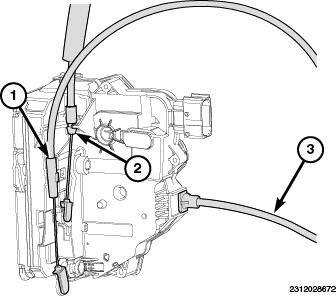

  5. Disconnect the latch cables (1, 2 and 3) and remove latch from door.
