Panel, Door Trim: Removal

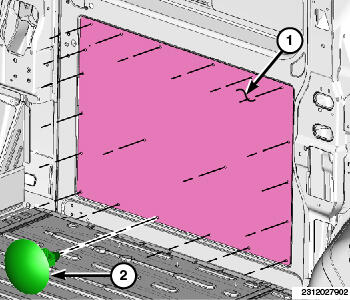

GC0160398Courtesy of CHRYSLER GROUP, LLC
  1. Remove the push-pin fasteners (2) with suitable trim tool.
  2. Remove trim panel (1) from vehicle.
