Cable, Hold Open Latch: Removal

GC0160547Courtesy of CHRYSLER GROUP, LLC
  1. Remove exterior door handle assembly. Refer to HANDLE, INTERIOR, REMOVAL .
  2. Remove the appropriate side door trim panel from the vehicle. Refer to PANEL, DOOR TRIM, REMOVAL .
    CAUTION:

    Make note of cable routing and foam insulator placement. This will prove helpful when reinstalling replacement cable. Be certain replacement cable is routed and retained correctly.

  3. Disconnect the hold open latch cable (1) from the handle assembly. Gently pry cable sleeve retainer out of the latch mounting bracket and then unhook cable end from the handle link.
    GC0160479Courtesy of CHRYSLER GROUP, LLC

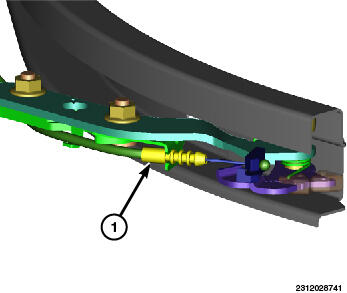

  4. Disconnect the hold open latch cable (1) from the hold open latch. Gently pry cable sleeve retainer out of the handle bracket and then unhook cable end from the latch link.
    GC0160602Courtesy of CHRYSLER GROUP, LLC

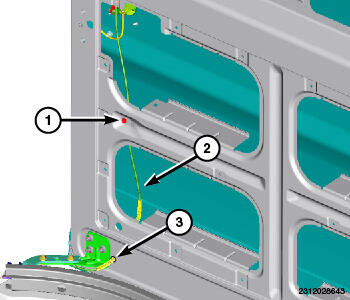

  5. Remove cable (2) from door retainer clips (1).
  6. Remove cable from door.
