Panel, Door Trim: Removal

GC0160178Courtesy of CHRYSLER GROUP, LLC
  1. Using a trim stick or equivalent, remove the speaker cover (1).

    (special tool #C-4755, Trim Stick)

    GC0160588Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1) and remove the speaker (2). Disconnect the electrical connector.

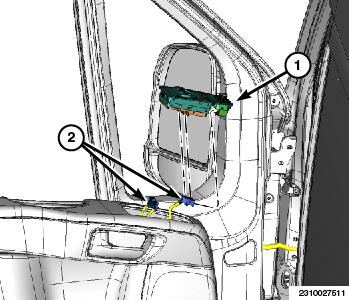

    GC0160618Courtesy of CHRYSLER GROUP, LLC
  3. Remove the switch assembly (1) and disconnect the electrical connectors (2).

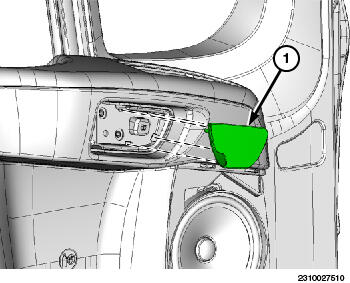

    GC0160685Courtesy of CHRYSLER GROUP, LLC
  4. Remove the release handle trim (1).
  5. Remove the interior door handle. Refer to HANDLE, INTERIOR, REMOVAL .

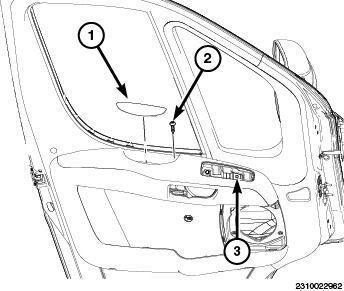

    GC0160527Courtesy of CHRYSLER GROUP, LLC
  6. Remove the pull cup liner (1).
  7. Remove the pull cup fastener (2) and fastener (3).

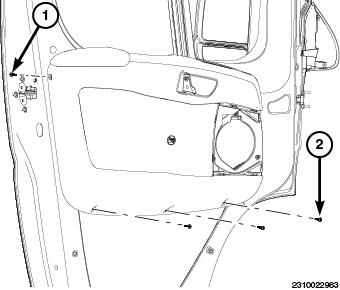

    GC0160599Courtesy of CHRYSLER GROUP, LLC
  8. Remove the fasteners (1 and 2).
    GC0203835Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect electrical connector from the Low Frequency (LF) antenna (2).

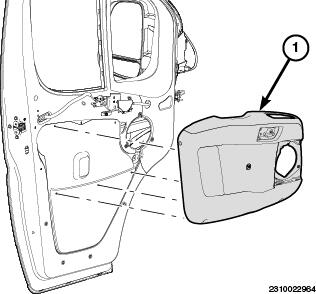

    GC0160536Courtesy of CHRYSLER GROUP, LLC
  10. Release the trim panel (1) from the door. If equipped, disconnect the wire harness connector and remove the trim panel.

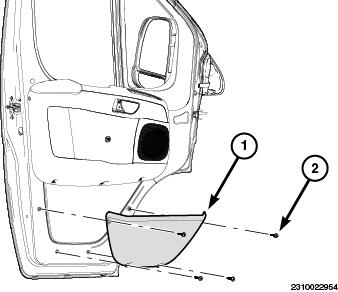

    GC0160360Courtesy of CHRYSLER GROUP, LLC
  11. Remove the fasteners (2) and remove the map pocket (1).
    GC0160486Courtesy of CHRYSLER GROUP, LLC
  12. Using a trim stick or equivalent, remove the lower trim (1).
