Home >> Dodge and Ram >> 2023 >> ProMaster 2500 >> Repair and Diagnosis >> Electrical >> Gauges >> Body - Interior & Exterior (1 Of 2) >> Doors - Front >> Handle, Interior >> Removal

Handle, Interior: Removal

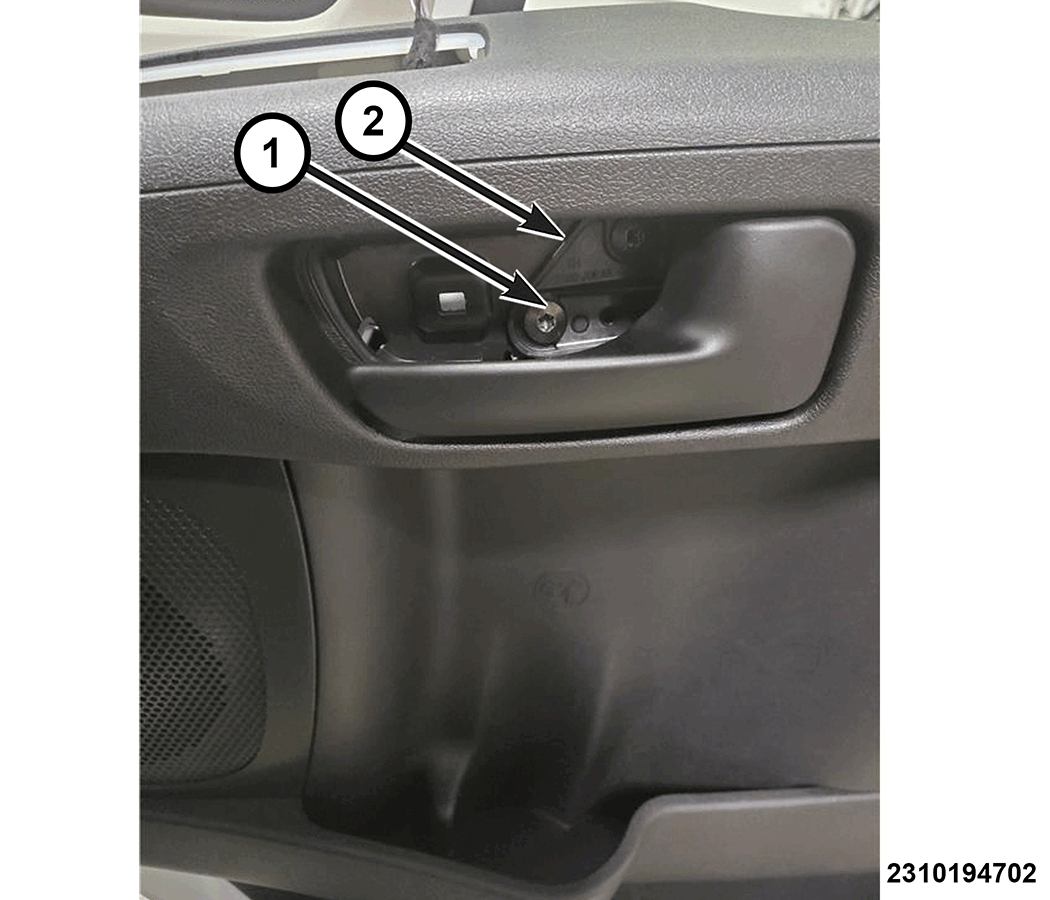

GC0206945Courtesy of CHRYSLER GROUP, LLC
  1. Remove the fasteners (1) and separate the handle (2) from the door bracket.

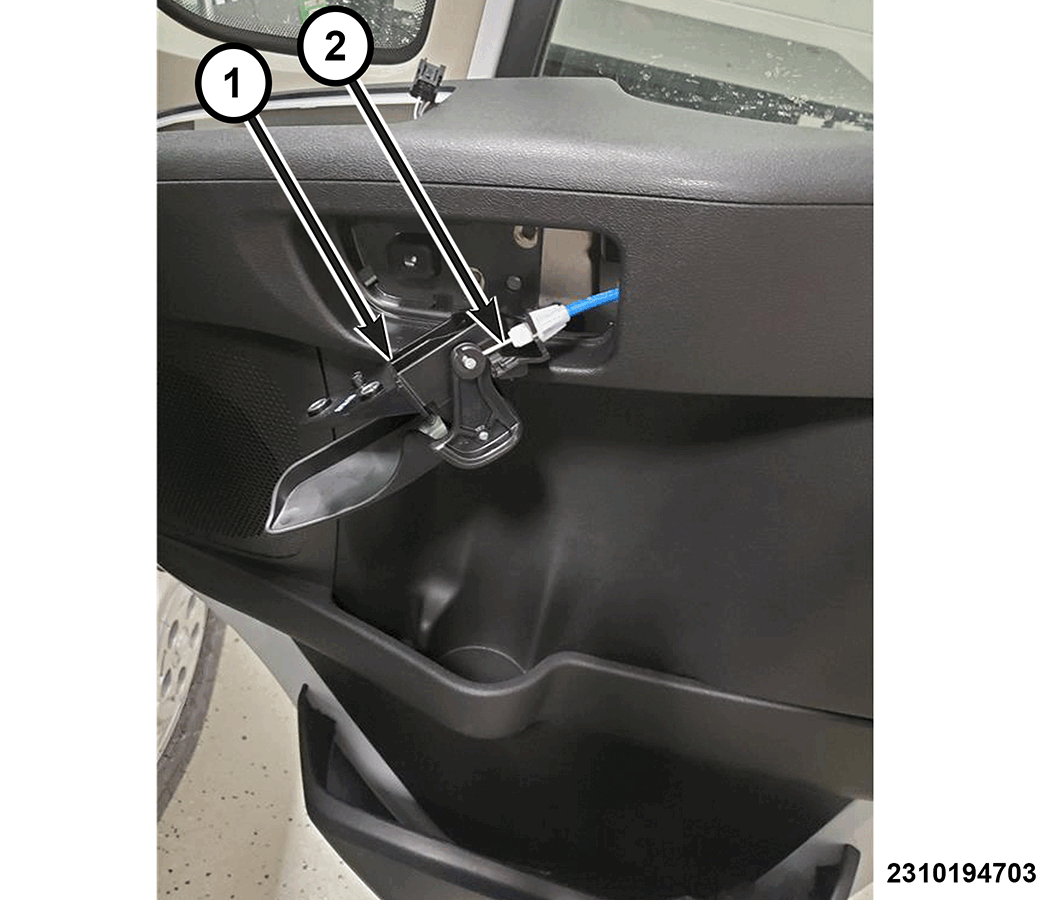

    GC0206970Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the release cable (2) from the handle (1).
