Adapter, Disc Brake Caliper: Installation: Rear

NOTE:

The brake caliper adapters must be free of rust and debris before the anti-rattle clips are installed.

GC0203957Courtesy of CHRYSLER GROUP, LLC

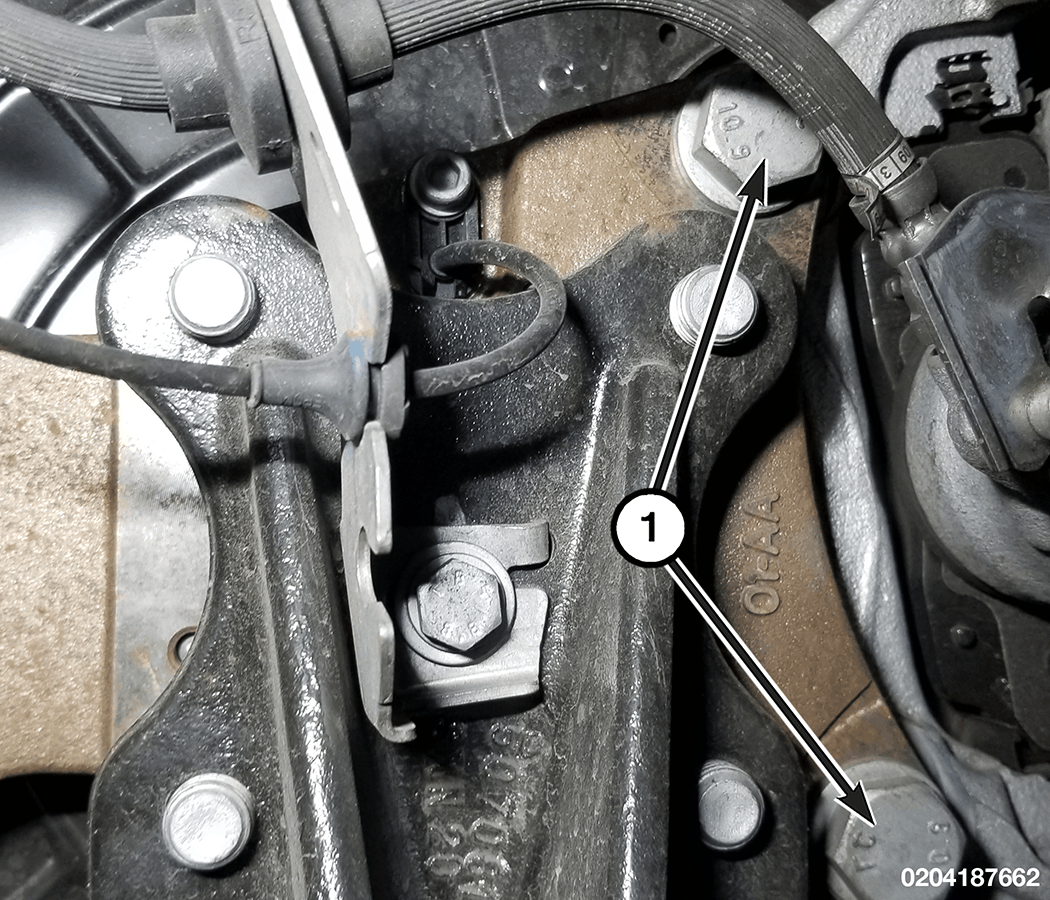

  1. Position the brake caliper adapter (1) to the spindle then install the disc brake caliper adapter mounting bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
    GC0203941Courtesy of CHRYSLER GROUP, LLC
  2. Install NEW  brake pad anti-rattle clips (3).
  3. Install the inboard brake pad (1) and the outboard brake pad (2).
  4. Install the brake caliper. Refer to CALIPER, DISC BRAKE, REAR, INSTALLATION .
  5. Install the wheel and tire assembly. Refer to INSTALLATION .
  6. Remove the support and lower the vehicle.
