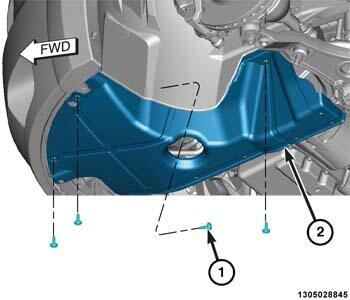

Left Side Shield

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the left side shield (2) to the vehicle.
2. Install the fasteners (1) that secure the left side shield (2) to the fascia and splash shield.
3. Tighten the fasteners (1) securely.
4. Install the engine belly pan. Refer to BELLY PAN, INSTALLATION .
5. Remove the support and lower the vehicle.
