Reinforcement, Bumper, Rear: Installation

Courtesy of CHRYSLER GROUP, LLC

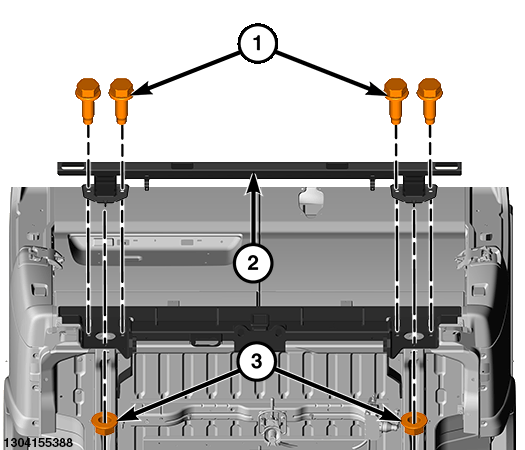

1. Support the rear bumper reinforcement (2) using a suitable lifting device to lift into position.
2. Position the rear bumper reinforcement (2) to the rear body.
3. Install the bolts (1) attaching the rear bumper reinforcement (2) to the rear body.
4. Tighten the rear bumper reinforcement bolts (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
5. Install the nuts (3) attaching the rear bumper reinforcement (2) to the rear body.
6. Tighten the rear bumper reinforcement nuts (3) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

7. Install the rear bumper cover (1). Refer to FASCIA, REAR, INSTALLATION .
