Fascia, Rear: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Left side shown in illustration, right side similar.

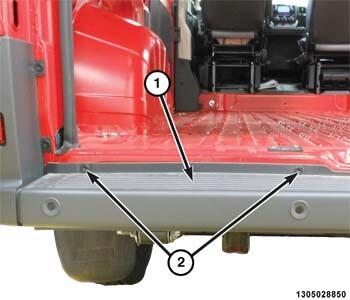

Position the bumper cover (1) onto the vehicle.
Install the upper fasteners (2) into the bumper cover (1) and repeat on the opposite side.
Tighten the rear bumper cover fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Left side shown in illustration, right side similar.

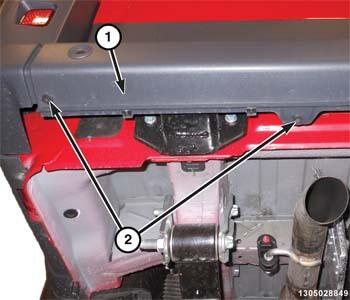

Install the lower fasteners (2) into the bumper cover (1) and repeat on the opposite side.
Tighten the rear bumper cover fasteners to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

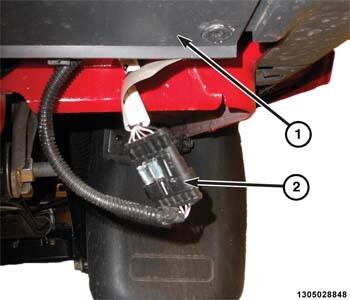

If equipped with parking assist sensors, connect the wiring connector (2) and clip to the bottom of the bumper cover (1).
If equipped with park assist, connect the negative battery cable.
