Front Fascia Assembly

  1. Remove the front splash shields. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  2. Remove the right underbody shield. Refer to SHIELD, UNDERBODY, REMOVAL .
  3. If equipped, disconnect the fog light wiring connectors.
  4. If equipped, disconnect any additional electrical connectors and remove the wire harness retaining clips from the fascia.
    GC0206971Courtesy of CHRYSLER GROUP, LLC
  5. Remove the fasteners (2) securing the front fascia (1) to the vehicle, then repeat on the opposite side.
  6. Repeat on the opposite side.
    GC0206957Courtesy of CHRYSLER GROUP, LLC
  7. Remove the fasteners (2) from the bottom of the fascia (1).
  8. Remove the grille. Refer to GRILLE, REMOVAL .
    GC0206978Courtesy of CHRYSLER GROUP, LLC
  9. Remove the fasteners (1) from the side of the fascia (2), then repeat on the opposite side.
    GC0206976Courtesy of CHRYSLER GROUP, LLC
  10. Remove the fasteners (1) from the center of the fascia (2).
    GC0206953Courtesy of CHRYSLER GROUP, LLC

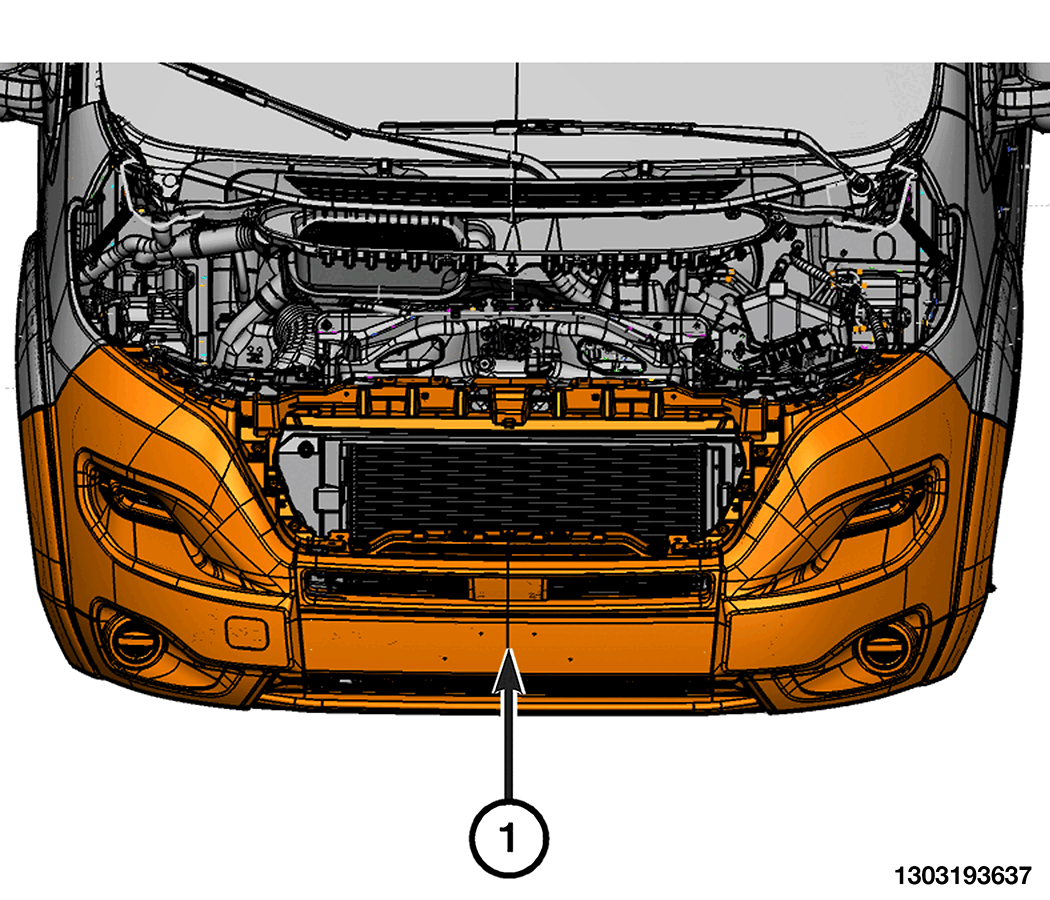

  11. Remove the front fascia assembly (1) from vehicle.
