Body - Interior & Exterior (2 Of 2): Exterior: Grille: Removal

  1. Remove the headlamps. Refer to UNIT, FRONT LAMP, REMOVAL .
    GC0206956Courtesy of CHRYSLER GROUP, LLC
  2. Remove the front lower spacers (2).

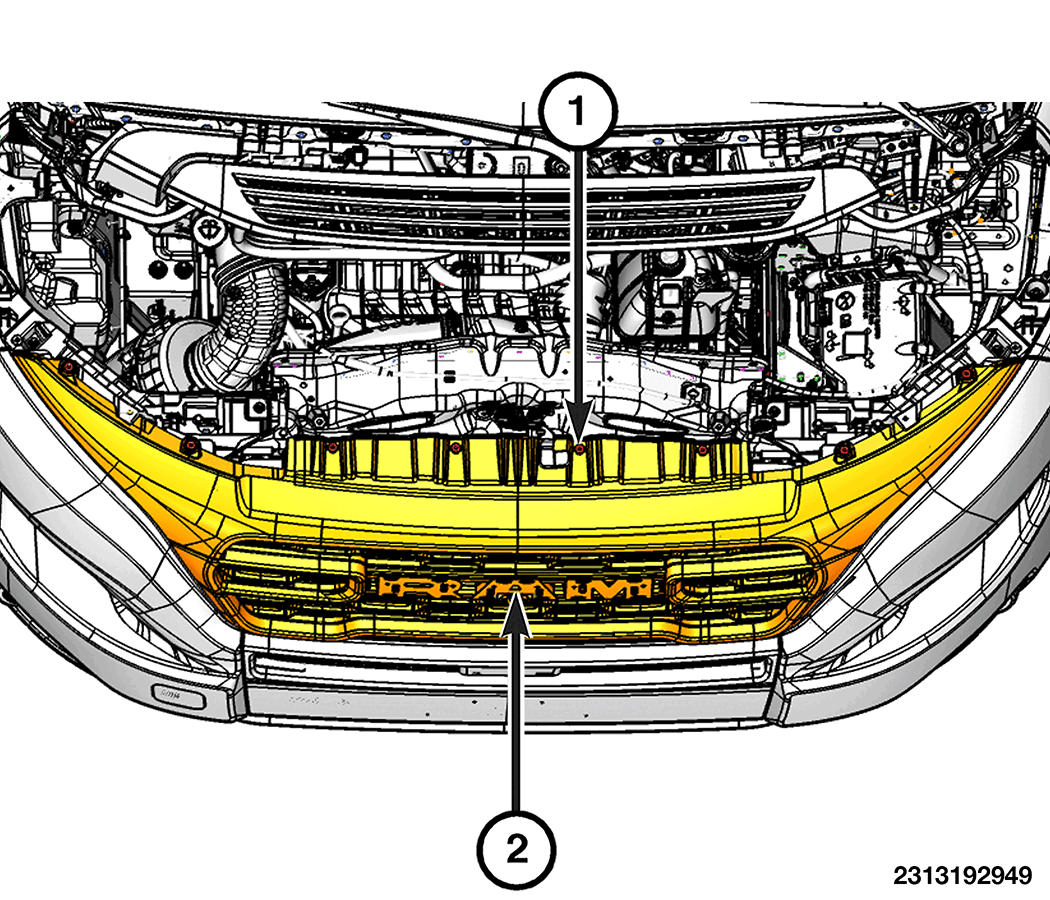

    GC0206951Courtesy of CHRYSLER GROUP, LLC
  3. Remove the upper fasteners (1) and remove the grille (2).
