Front Door Trim Panel

  1. Disconnect and isolate the battery negative cable.
  2. Remove the front door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .

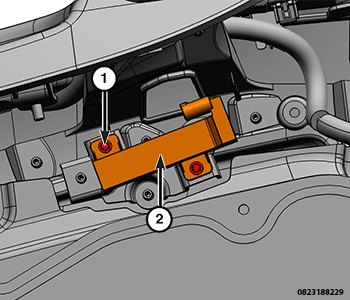

    GC0203835Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector from the Low Frequency (LF) antenna (2).
  4. Remove the screws (1) that secure the LF antenna to the front door trim panel.
  5. Remove the LF antenna from the front door trim panel.
