Rear Fascia

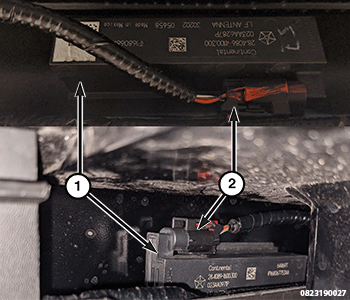

GC0203906Courtesy of CHRYSLER GROUP, LLC
  1. Connect the wire harness connector (2) to the Low Frequency (LF) antenna (1).
  2. Position the LF antenna to its bracket and seat firmly allowing the retainer to engage the antenna.
  3. If removed, install the rear fascia. Refer to FASCIA, REAR, INSTALLATION .
  4. Connect the negative battery cable.
