Bezel, Instrument Panel, Center: Installation

Courtesy of CHRYSLER GROUP, LLC

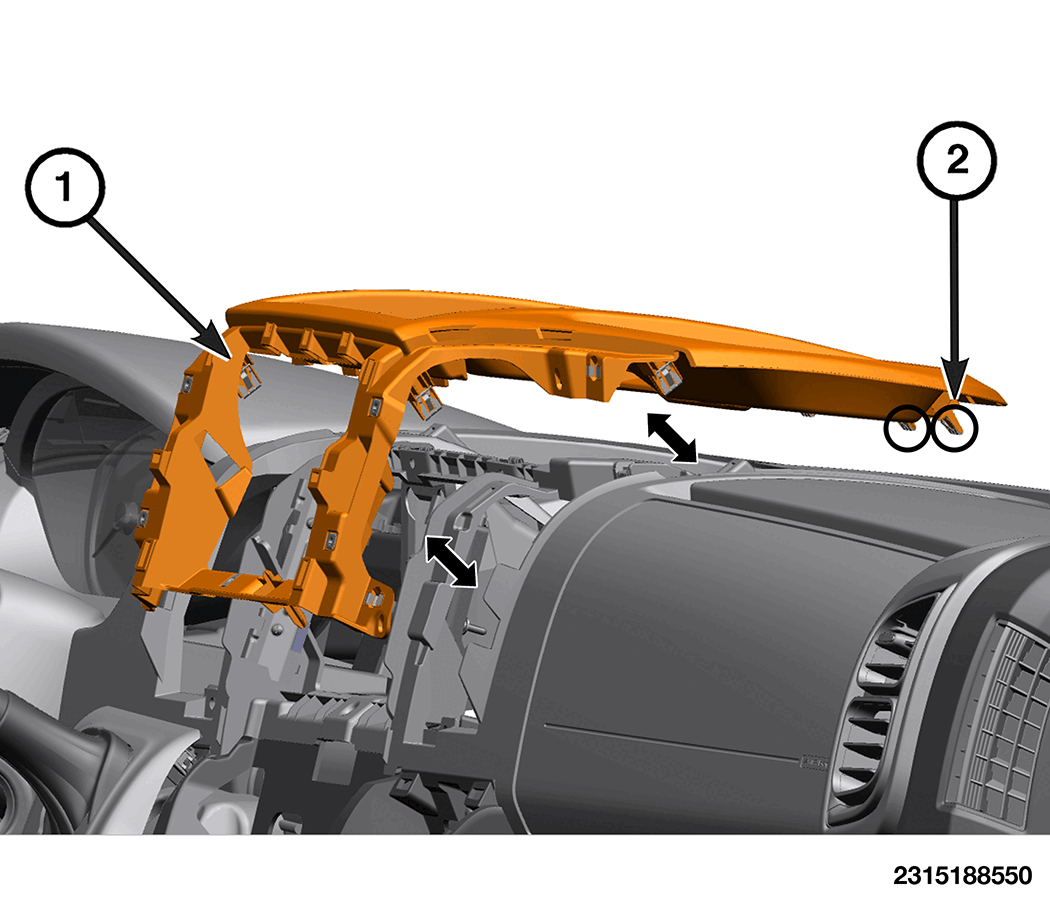

1. Position the tabs (2) into the instrument panel then press firmly to install the instrument panel center bezel (1). Verify the retaining clips are fully seated.

   Courtesy of CHRYSLER GROUP, LLC

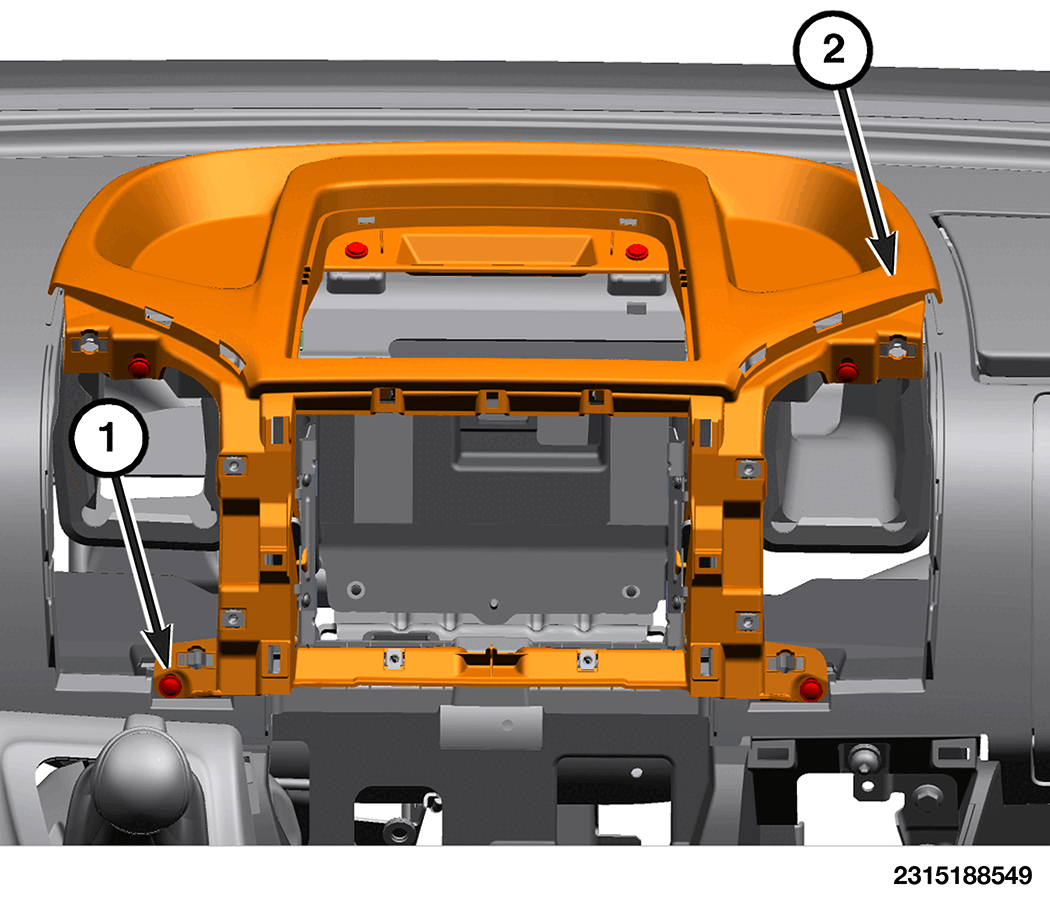

2. Install the fasteners (1) and tighten securely.

   Courtesy of CHRYSLER GROUP, LLC

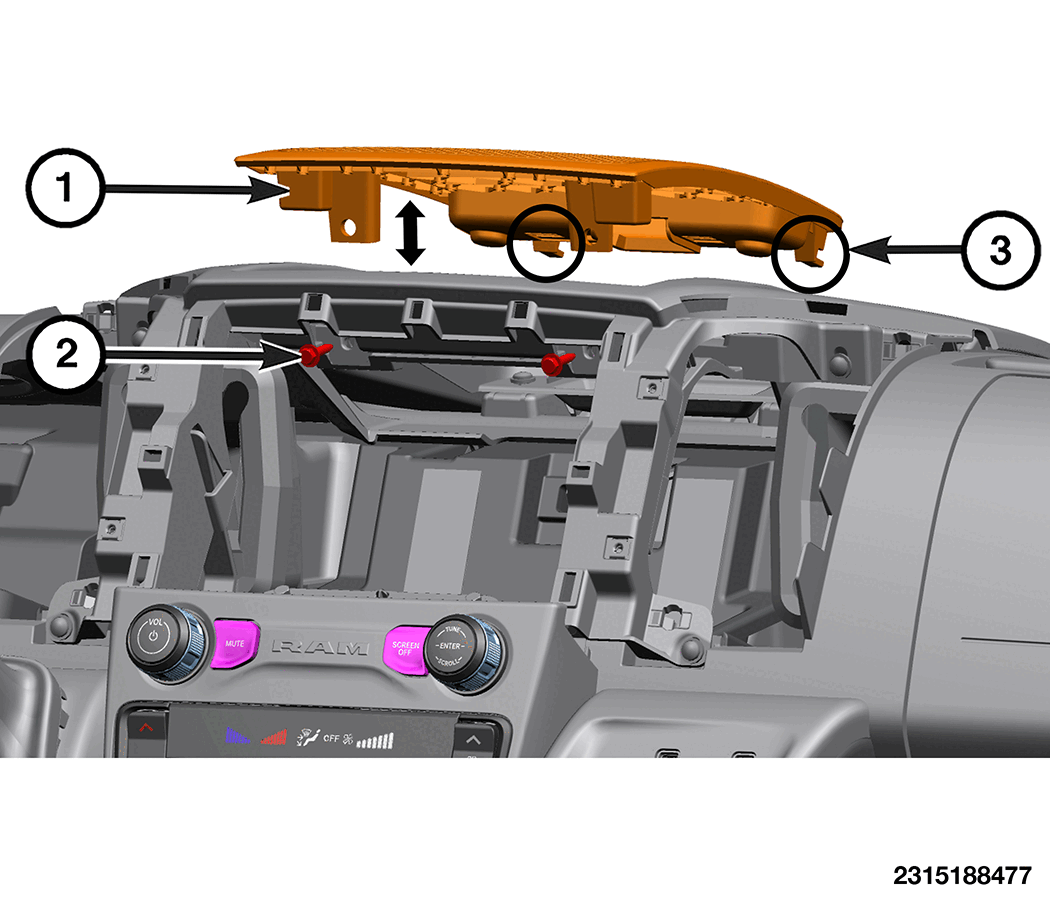

3. Position the tabs (3) into the instrument panel and install the upper closeout (1).
4. Install the fasteners (2) and tighten securely.
5. Install the Integrated Center Stack (ICS). Refer to MODULE, INTEGRATED CENTER STACK (ICSM), INSTALLATION .
