Pump, Transmission Oil: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the transmission oil pump from the transmission. Refer to PUMP, TRANSMISSION OIL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Apply air pressure slowly, oil may spray when B-piston releases from the assembly.

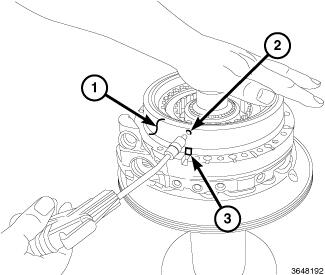

With one hand above B-piston (1), carefully apply air pressure into the hole (2) directly above the B-piston alignment tab (3) to remove B-piston from the assembly.

Courtesy of CHRYSLER GROUP, LLC
Remove the outer ring (1) (inside clutch B piston).
Remove the clutch A snap ring (2).
Remove the clutches and spacers (4).
Remove the hub (3).

Courtesy of CHRYSLER GROUP, LLC
Position the transmission oil pump housing assembly (4) in a suitable press.
Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the belleville spring to remove tension on the split retaining ring (2), and remove the two halves of the retaining ring (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the belleville spring (1) and plate.

Courtesy of CHRYSLER GROUP, LLC
Remove the clutch A piston (1) and seal (2) from the transmission oil pump.

Courtesy of CHRYSLER GROUP, LLC
Remove the inner (1) and outer (2) transmission oil pump O-rings.

Courtesy of CHRYSLER GROUP, LLC
Remove the bolts (1) from the transmission oil pump.

Courtesy of CHRYSLER GROUP, LLC
Separate the two halves of the transmission oil pump, by pushing on the hub.

Courtesy of CHRYSLER GROUP, LLC
Carefully pry up on the transmission oil pump (1), separating it from the housing (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the drive sprocket, chain and pump body (1) as an assembly.

Courtesy of CHRYSLER GROUP, LLC
Remove the transmission oil pump O-ring (2).
Remove the transmission oil pump seal (1).
