Pump, Transmission Oil: Removal

WARNING: This page is about a different variant/trim than selected.

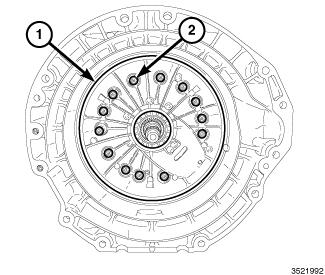

GC0209142Courtesy of CHRYSLER GROUP, LLC
  1. Remove the transmission. Refer to REMOVAL .
  2. Remove the valve body. Refer to VALVE BODY, REMOVAL .
  3. Remove and DISCARD  the transmission oil pump assembly to case bolts (2).

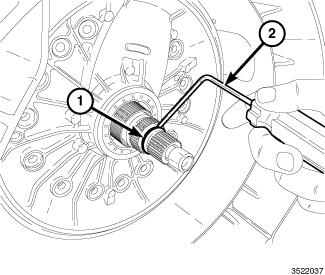

    GC0209141Courtesy of CHRYSLER GROUP, LLC
  4. Remove the input shaft O-ring (1) using a small pick (2) or equivalent.
    GC0154661Courtesy of CHRYSLER GROUP, LLC
  5. Carefully pry the transmission oil pump housing (2) away from the case with a small flat blade screwdriver (1) or equivalent through the case opening.
    GC0154629Courtesy of CHRYSLER GROUP, LLC
  6. Remove and DISCARD  the inner (1) and outer (2) oil pump O-rings.
