Pump, Transmission Oil: Assembly
WARNING: This page is about a different variant/trim than selected.
- Install the transmission oil pump seal (1).
- Install the transmission oil pump O-ring (2).

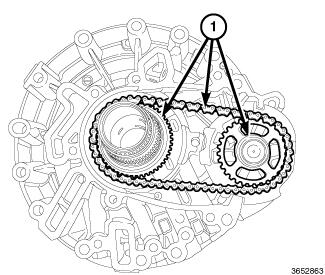

- Carefully install the drive sprocket, chain and pump body (1) as an assembly into the oil pump housing.

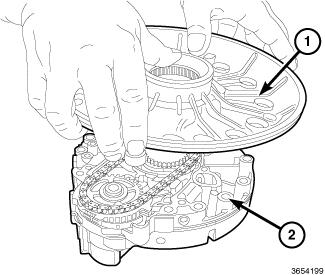

- Set the pump cover (1) onto the oil pump housing (2).
- Install NEW

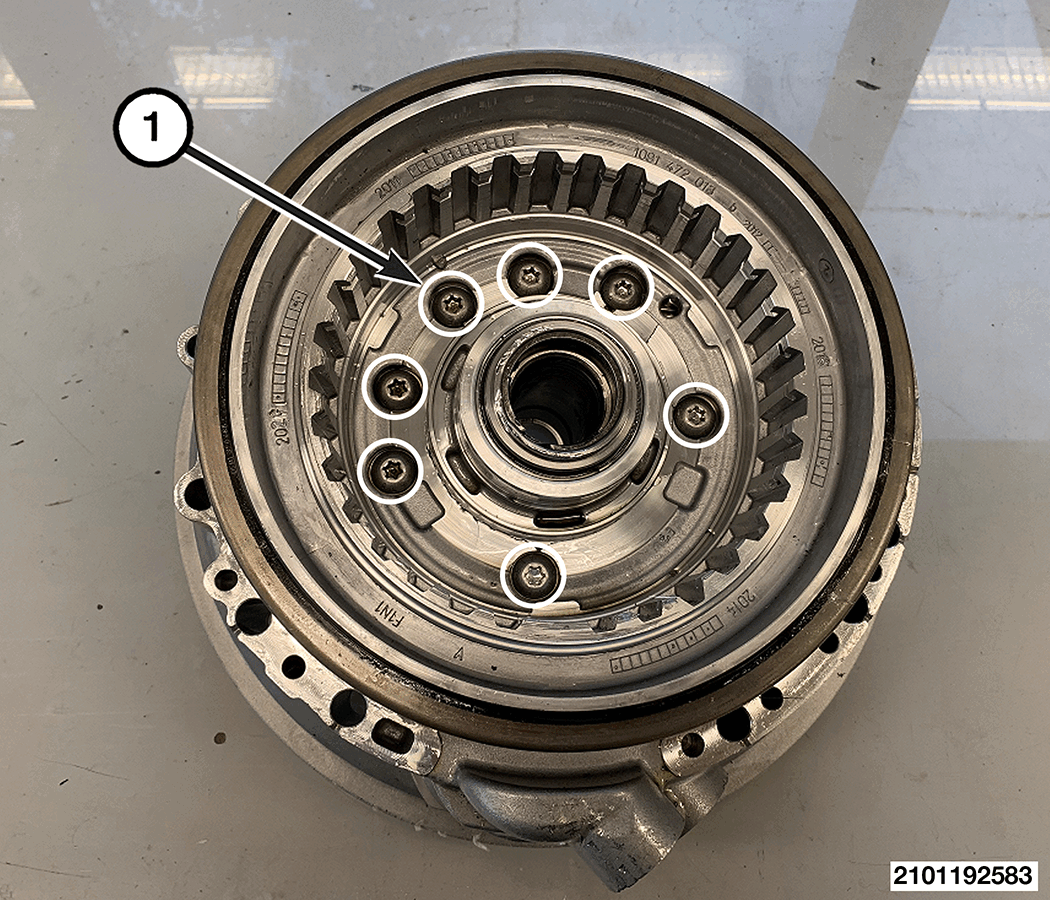

oil pump housing bolts (1) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS
.
- Install NEW
oil pump housing inner (1) and outer (2) O-rings.
- Install a NEW
clutch A piston seal (2) and install the clutch A piston (1).

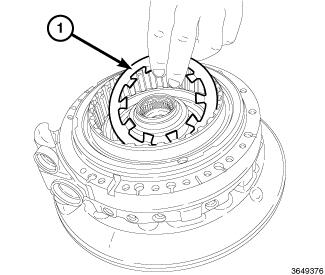

- Install the plate and clutch A belleville spring (1).
- Position the transmission oil pump housing assembly (4) in a suitable arbor press.

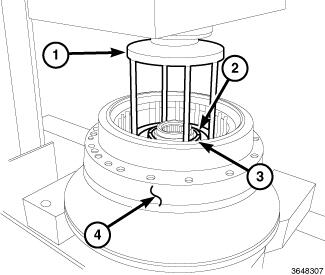

- Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston belleville spring to remove tension, and install the two halves of the split retainer ring (2).
- Install the hub (3).
- Install the clutches and spacers (4).

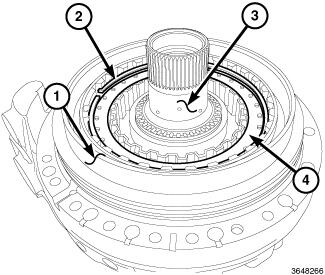

- Install the snap ring (2).
- Install the outer ring (1) (clutch B piston).

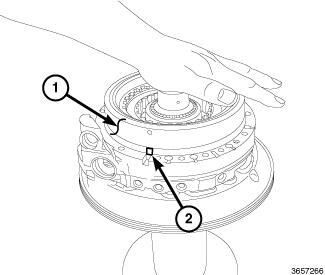

- Position the clutch B piston alignment tab above the notch (2) and install the clutch B piston (1) on the assembly.
- Install the transmission oil pump. Refer to PUMP, TRANSMISSION OIL, INSTALLATION .
