Damper, Vibration: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Drain the cooling system. Refer to DRAINING .

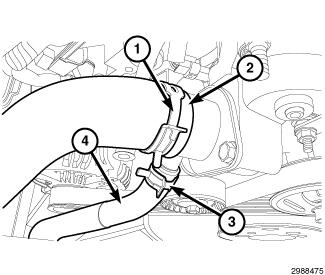

    GC0210127Courtesy of CHRYSLER GROUP, LLC
  3. Remove the upper radiator hose clamps (1) and remove the upper radiator hose (2).
  4. Remove the oil cooler hose clamp (3) and remove oil cooler hose (4) and position aside.
  5. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .
  6. Remove the cooling fan assembly. Refer to FAN, COOLING, REMOVAL .

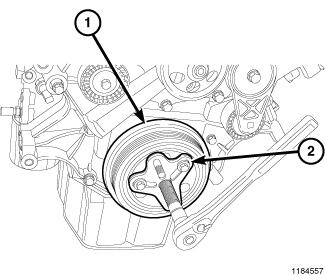

    GC0209491Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    When installing the puller tool, ensure the bolts are fully threaded through the entire crankshaft damper.

  7. Remove the vibration damper bolt and discard.
  8. Install the puller tool (2) making sure the bolts are fully threaded through the entire crankshaft damper.
  9. Remove the crankshaft damper (1).
