EXHAUSTER, Quarter Panel: Removal

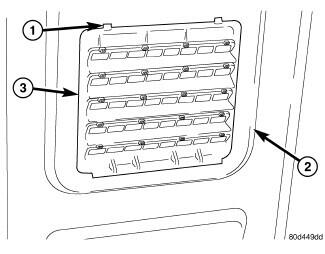

GC0208949Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL .
  2. Disengage the retaining tabs (1) that secure the body exhauster (3) to the outer quarter panel (2).
    GC0172115Courtesy of CHRYSLER GROUP, LLC
  3. Separate and remove the exhauster (1).
