Plate, Carrier: Removal

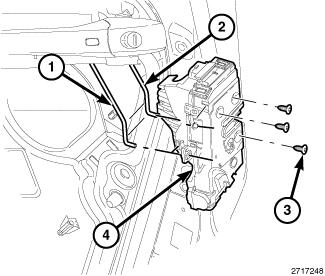

GC0209026Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front door glass. Refer to GLASS, DOOR, REMOVAL .
  2. Open the service access door and disconnect the handle and key cylinder links (1 and 2) from the latch, if equipped.
  3. Remove the latch mounting fasteners (3).

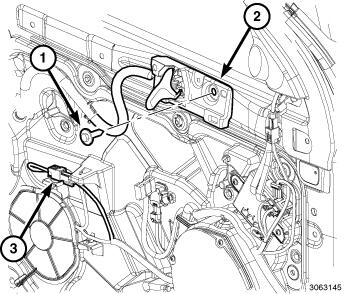

    GC0209025Courtesy of CHRYSLER GROUP, LLC
  4. Remove the screw (1) and release the inner handle (2) from the door.
  5. Disconnect the passive entry jumper harness connector (3), open the access door and place the end inside the door.
  6. Disconnect the remaining harness connectors and position the harness aside.

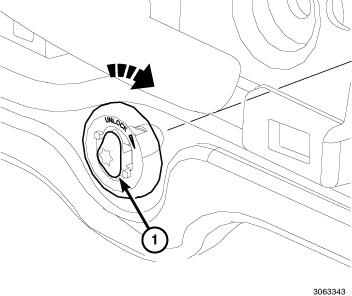

    GC0209024Courtesy of CHRYSLER GROUP, LLC
  7. Locate and release the three retaining clips (1) by turning clockwise.

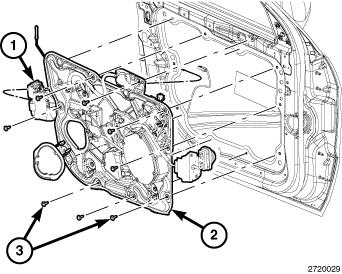

    GC0209013Courtesy of CHRYSLER GROUP, LLC
  8. Remove the perimeter screws (3) and separate the carrier plate (2) from the door.
  9. Tip the regulator rails out of the door and remove the door latch (1) from the door opening with the carrier plate (2).
