Glass, Door: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the upper trim molding. Refer to MOLDING, DOOR BELT, OUTER, REMOVAL .
Remove the door speaker. Refer to SPEAKER, REMOVAL .
NOTE:
There are foam seals at either end that is held in place by the inner belt molding. Carefully remove the seals along with the inner belt molding.

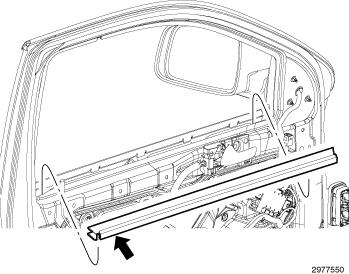

Separate the belt molding from the door mounting flange from the back to the front.

Courtesy of CHRYSLER GROUP, LLC

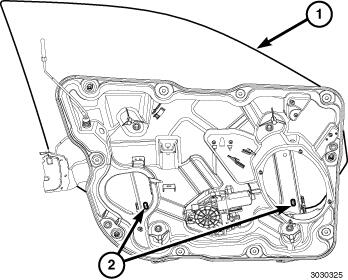

Using the regulator, move the front door glass (1) up or down as required to access the two window regulator glass release tabs (2) through the access holes in the regulator rails.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Place a protective covering over the outer belt molding to prevent grease transfer to the molding and glass.

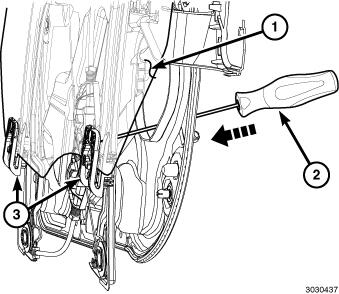

Using a small round bladed tool (2) or equivalent, release the door glass (1) from the window regulator glass sliders (3).

Courtesy of CHRYSLER GROUP, LLC

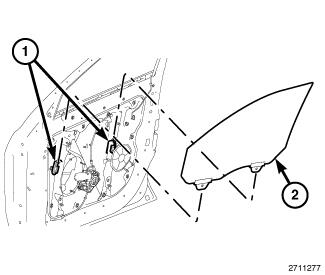

Carefully rotate the door glass (2) within the window opening and remove the glass from the door through the window opening.
