Antenna, Satellite: Description
The audio system components are designed to provide audio entertainment and information through the reception, tuning and amplification of locally broadcast radio signals in both the Amplitude Modulating (AM), Frequency Modulating (FM), Frequency Modulating 2 (High Definition/HD Radio) and Satellite Digital Audio Radio Service (SDARS) commercial frequency ranges.

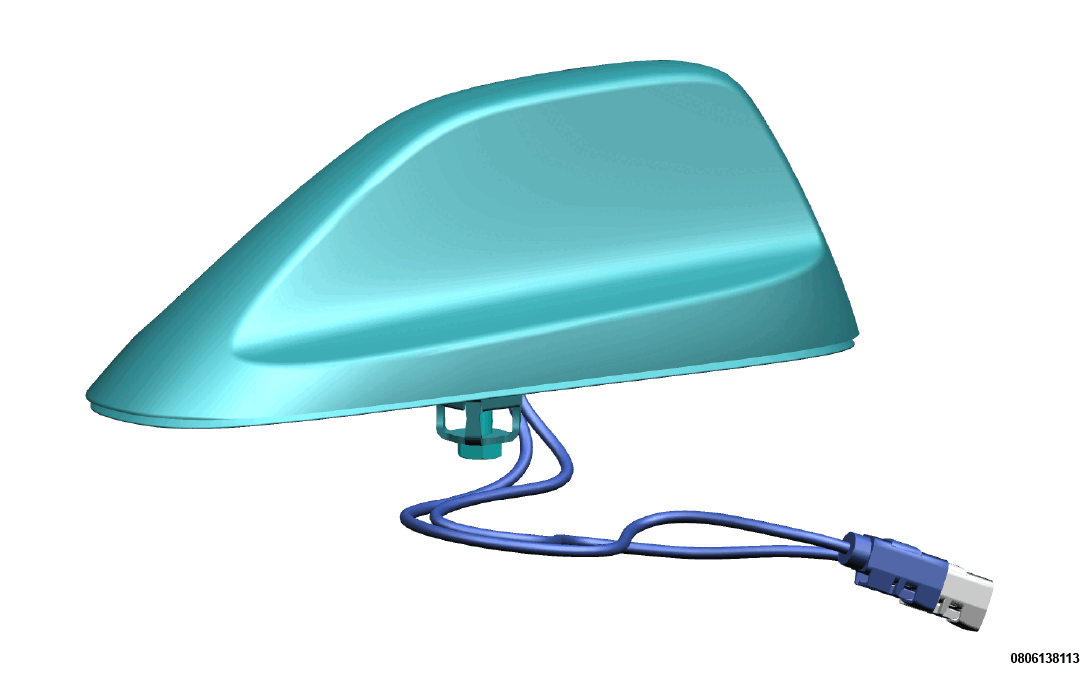

The vehicle is equipped with a combined antenna for AM/FM/FM2/SDARS radio and Global Positioning System (GPS) navigation signals and is connected to the radio through the specific coaxial cables. In addition, the antenna provides reception of Long Term Evolution 1 (LTE1) cellular signals.
For information on how to use (special tool #9977-6, Kit, Radio Antenna Diagnostic) refer to the DTC or Non DTCs . For DTC, Refer to DIAGNOSTIC CODE INDEX . For Non DTC, Refer to DIAGNOSIS AND TESTING .
For removal and installation information, Refer to ANTENNA, SATELLITE, REMOVAL .
