Antenna, Satellite: Removal

CAUTION:

Do not stand on the tire or the bumper while servicing the antenna. Failure to follow the instructions will cause personal injury or vehicle damage.

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

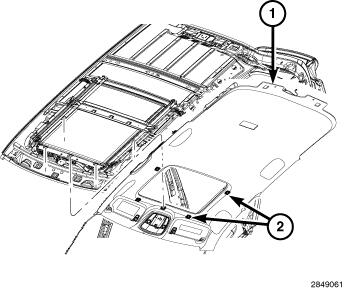

Lower the rear portion of the rear headliner (1) as necessary to access underside of antenna. Refer to HEADLINER, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

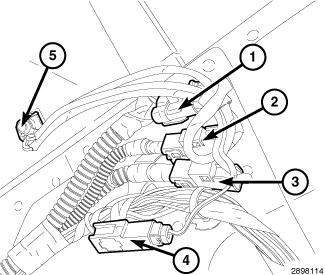

Disconnect the navigation (1), SDAR (2), AM/FM (3) and the 5 volt power (4) wire harness connectors from the antenna.
Remove the antenna mounting retainer (5).
From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
