Lamp, Center High Mounted Stop: Installation

Courtesy of CHRYSLER GROUP, LLC

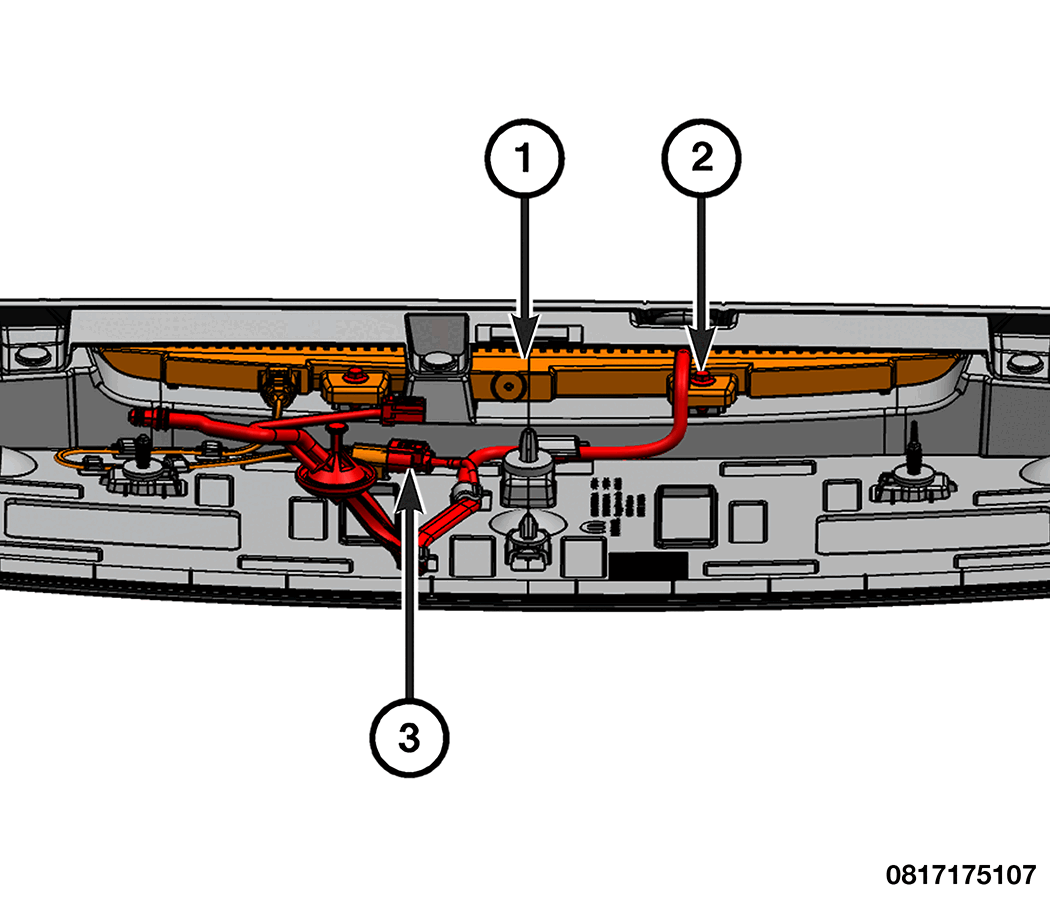

1. Position the Center High Mounted Stop Lamp (CHMSL) (1) through the opening on the liftgate side of the spoiler.
2. Install and tighten the screws (2) that secure the CHMSL (1) to the liftgate spoiler. Tighten the screws securely.
3. Reconnect the wire harness connector (3) to the connector receptacle on the back of the CHMSL (1).
4. Install the spoiler and CHMSL to the liftgate flip-up glass as a unit. Refer to SPOILER, INSTALLATION .
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
