Switch, Dimmer: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

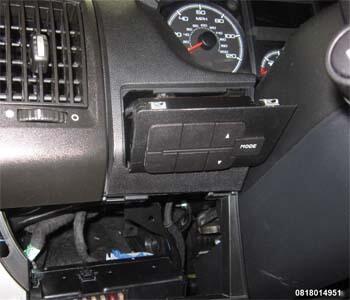

    GC0160175Courtesy of CHRYSLER GROUP, LLC
  3. Reach up into the instrument panel and push on the back of the mode switch. It will pop loose from its position.

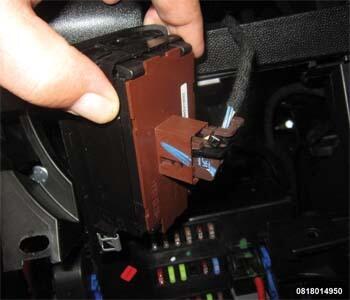

    GC0160181Courtesy of CHRYSLER GROUP, LLC
  4. Pull the mode switch out from the instrument panel and disconnect the connector from the back of the switch.
  5. The mode switch can now be removed from the vehicle.
