Cover, Steering Column Opening: Removal

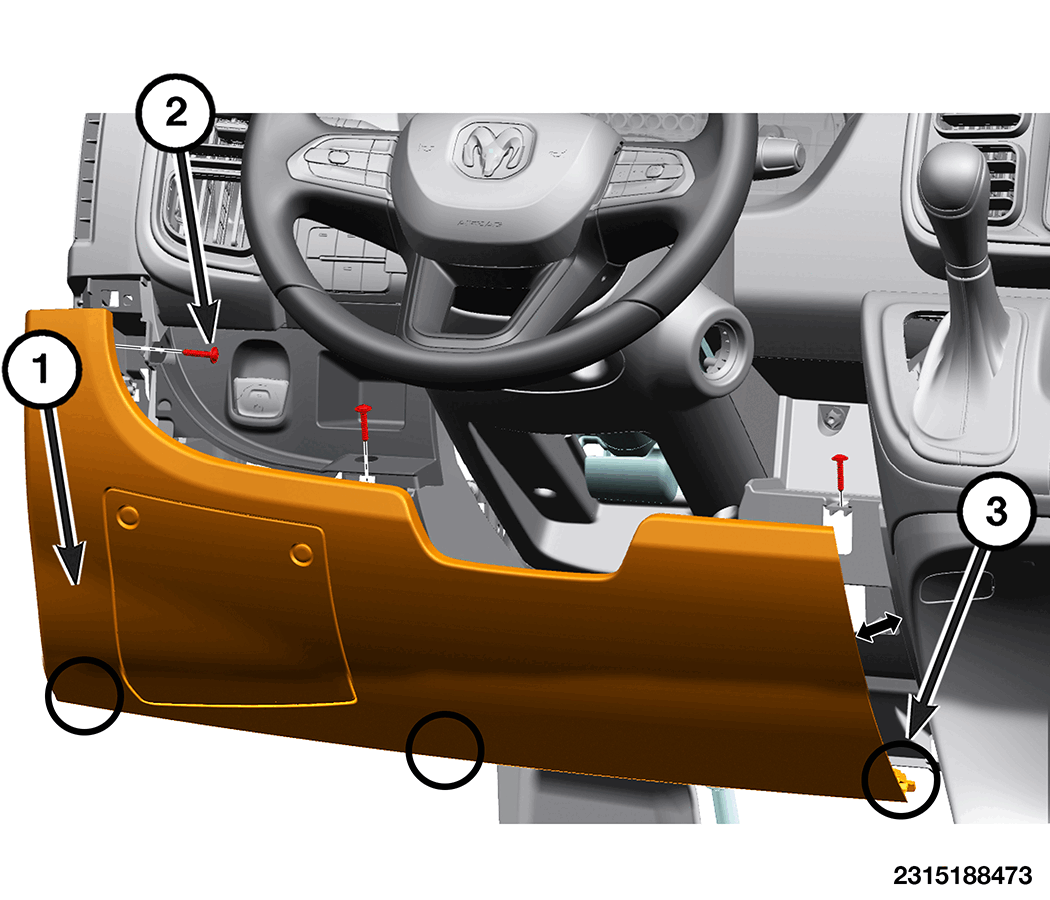

GC0203958Courtesy of CHRYSLER GROUP, LLC
  1. Remove the steering column opening cover fasteners (2).
  2. By hand, disengage the top of the steering column opening cover (1) then roll out the steering column opening cover (1) to disengage the lower tabs (3) from the instrument panel.
  3. Remove opening cover (1) from the vehicle.
