Carpet, Floor: Removal

  1. Remove the front seats. Refer to SEAT, FRONT, REMOVAL .
  2. Remove the rear seat. Refer to SEAT, FRONT, REMOVAL .
  3. Remove the floor console. Refer to CONSOLE, FLOOR, END CAP, REMOVAL .
  4. Remove the front door sill scuff plates. Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .
  5. Remove the cowl trim panels. Refer to PANEL, COWL TRIM, SIDE, REMOVAL .
  6. Remove the rear passenger door sill scuff plates. Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .
  7. Remove the lower B-pillar trim panels. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL .
  8. Remove the rear load flooring. Refer to LOAD FLOOR, FOOTWELL, REMOVAL .
  9. Remove the quarter trim. Refer to PANEL, QUARTER TRIM, REMOVAL .

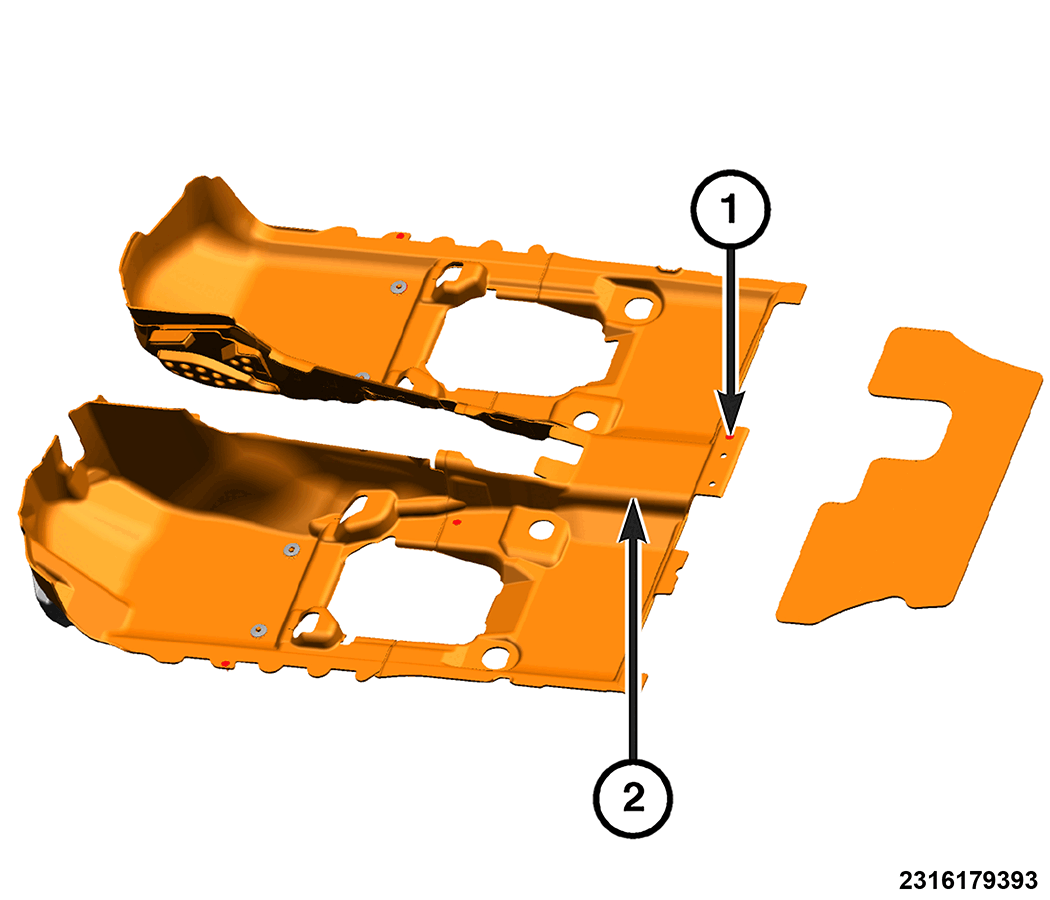

    GC0199697Courtesy of CHRYSLER GROUP, LLC
  10. Remove the appropriate fasteners (1), then remove the appropriate carpet (2) from the vehicle.
