Console, Floor, End Cap: Removal

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

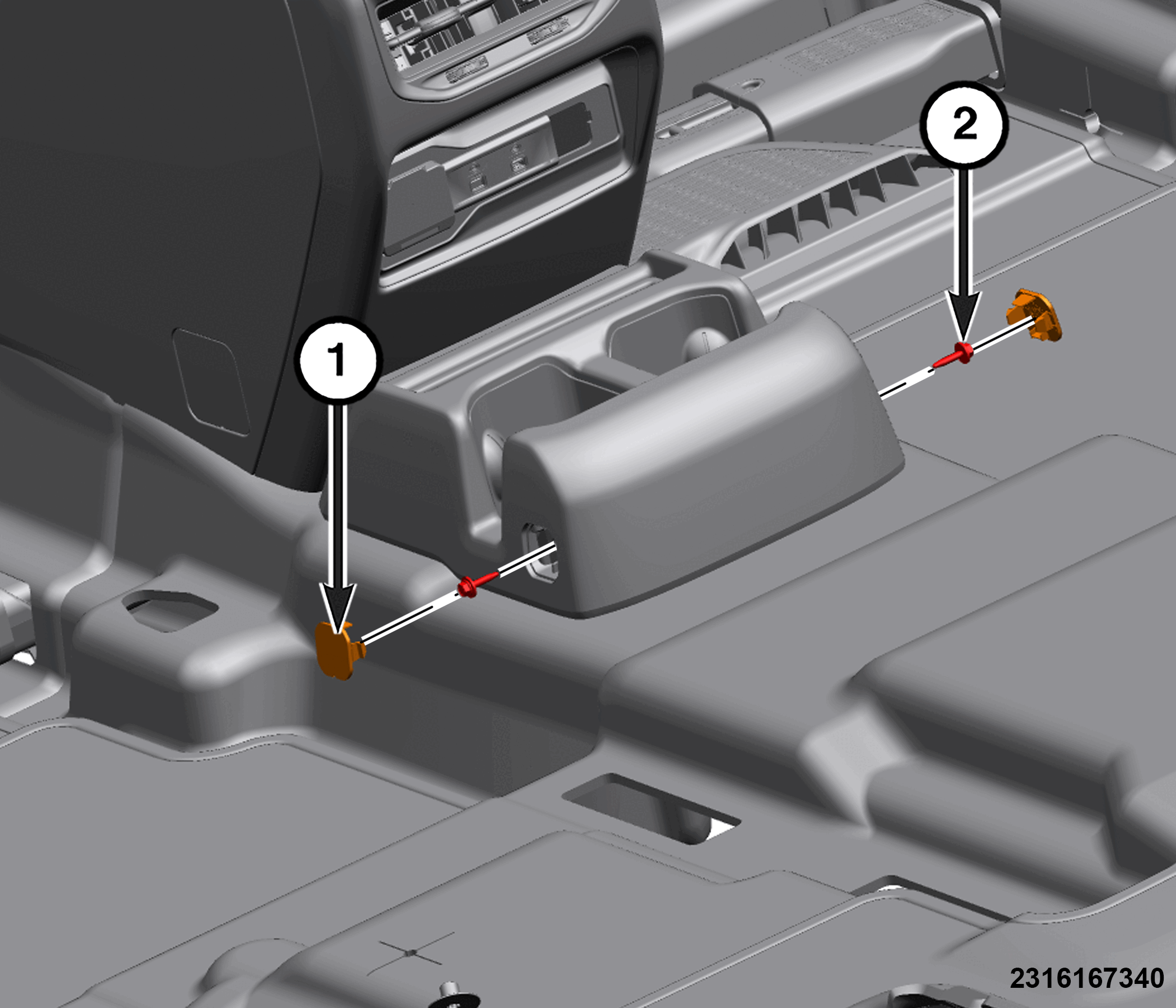

If equipped with rear seat cup holder, remove the fastener covers (1) and remove the fasteners (2) from the rear cup holder.

Courtesy of CHRYSLER GROUP, LLC

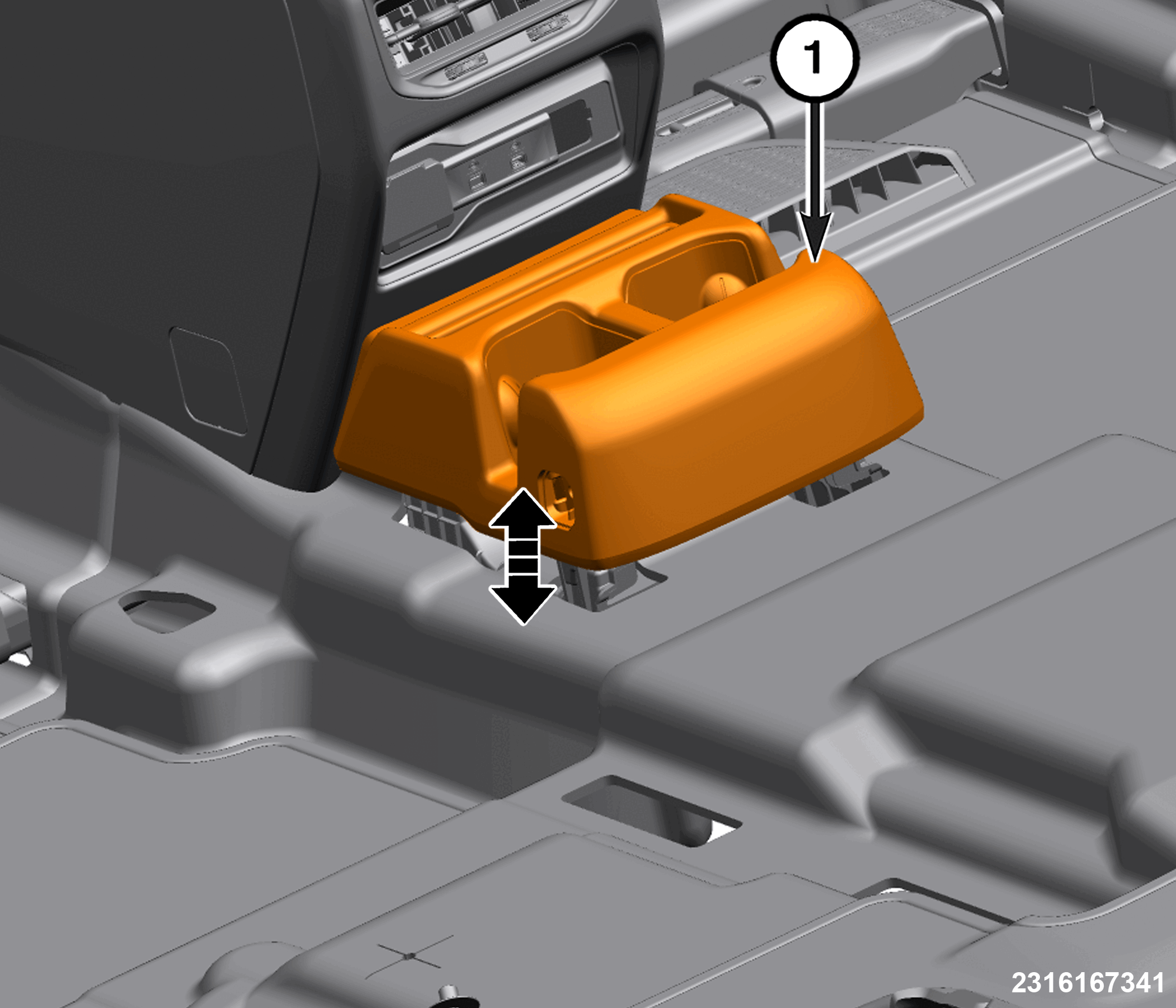

Lift up and back and remove the rear cup holder (1) from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

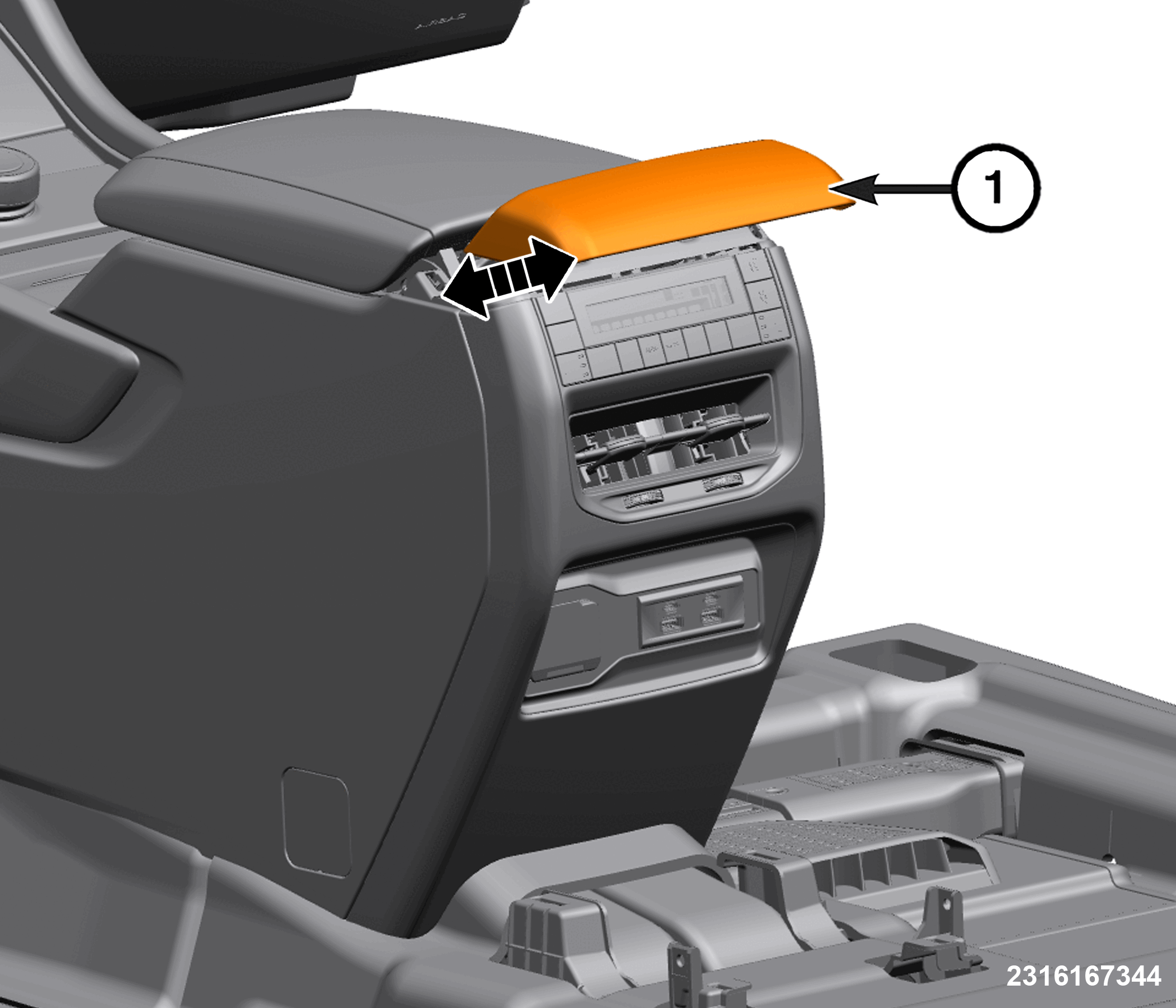

Using a trim stick or equivalent, release the console end cap upper trim panel (1) and remove from the console.

Courtesy of CHRYSLER GROUP, LLC

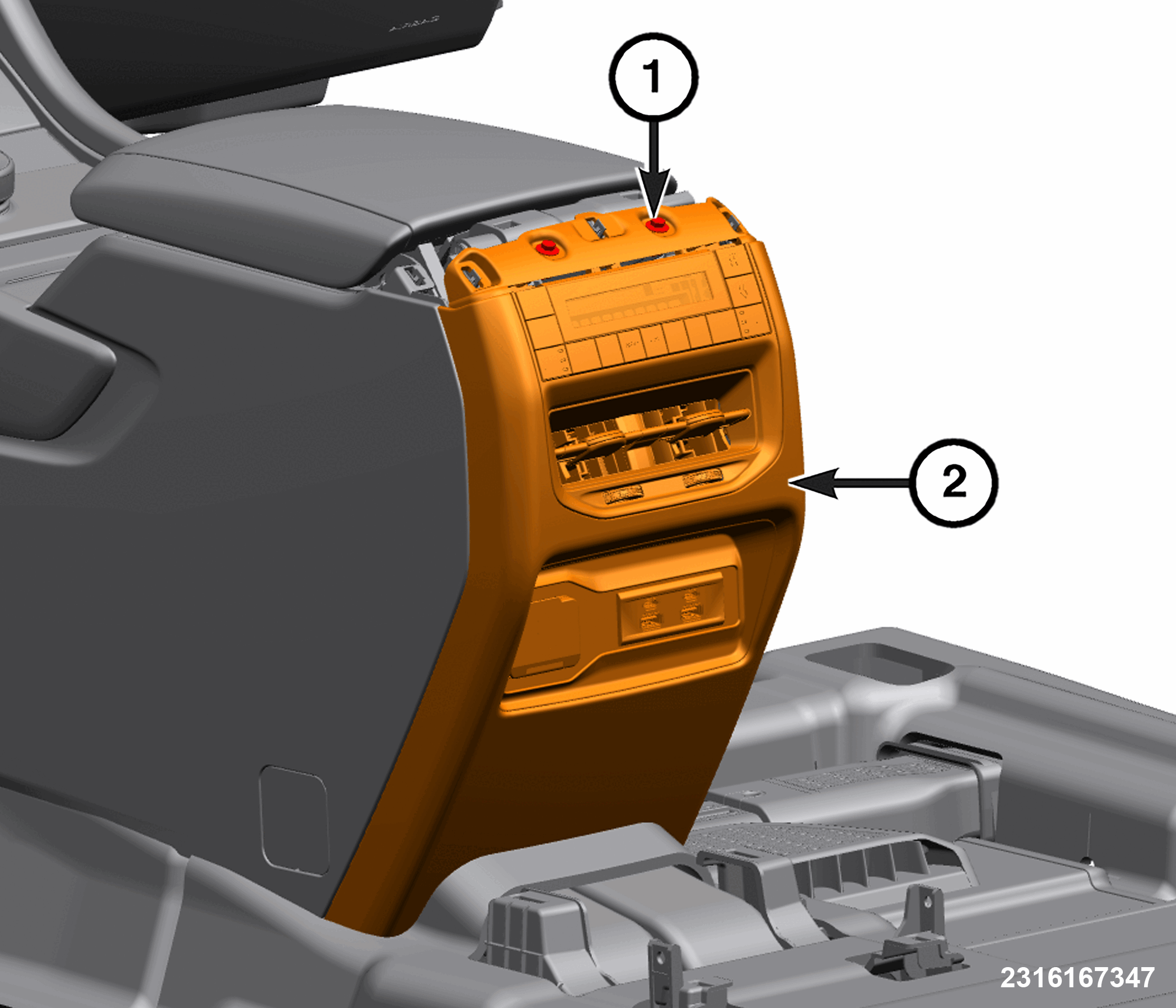

Remove the fasteners (1) from the floor console end cap (2).

Courtesy of CHRYSLER GROUP, LLC

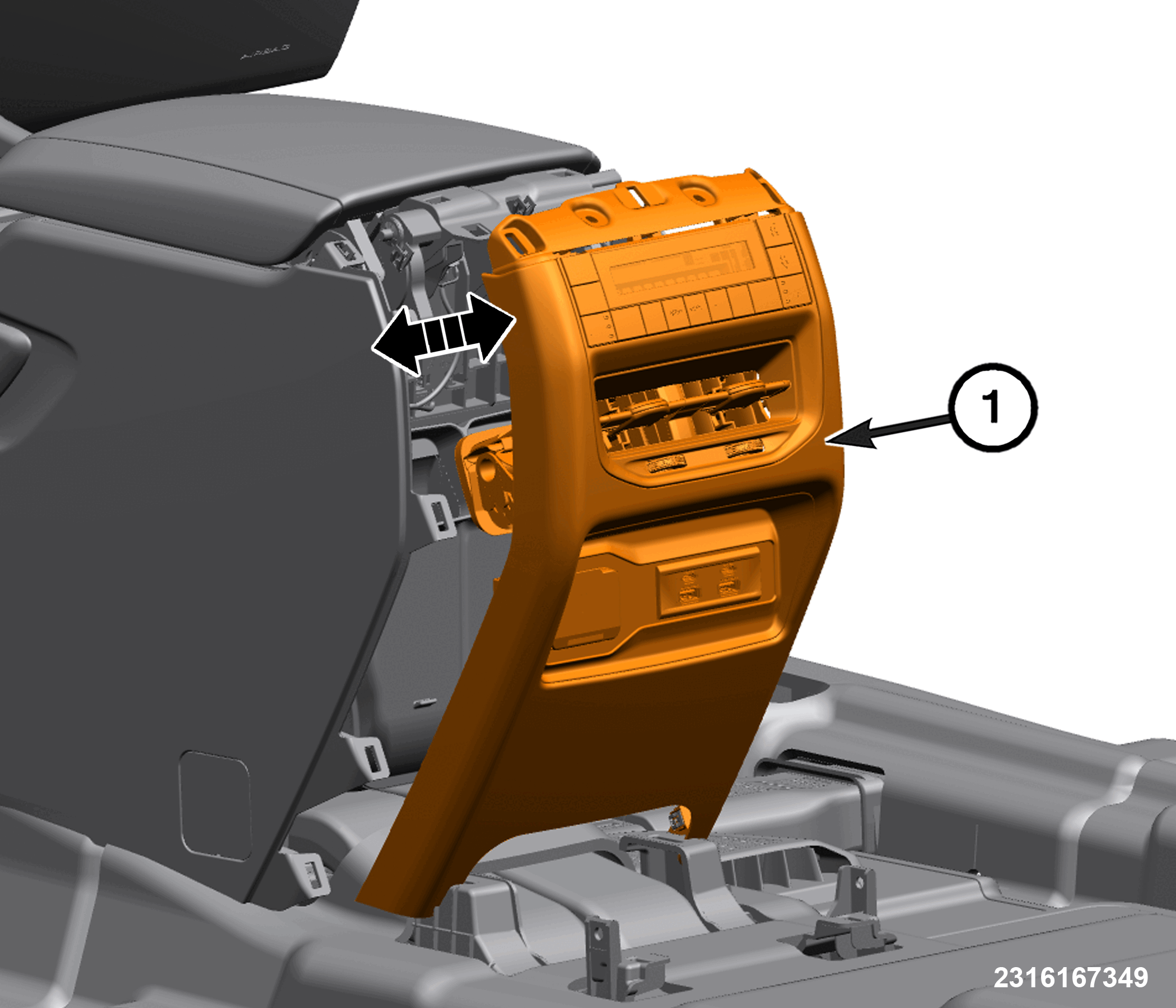

Using a trim stick or equivalent, release the floor console end cap (1) from the floor console.
Disconnect all of the wire harness connectors.
Remove the console end cap (1) from the vehicle.
