Removal - SRT Only

NOTE:

The Daytime Running Lamps (DRL) for non-SRT vehicles are integral to the front lamp units.

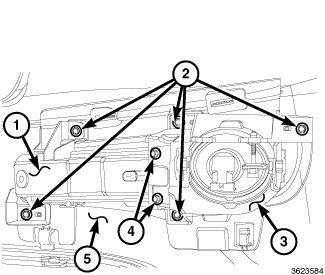

GC0153857Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  3. Disconnect the wiring harness connections to the Daytime Running Lamp (DRL) (1) and the front fog lamp bulb on the back of the front fascia (5).
  4. Remove the fasteners (2) securing the DRL and the front fog lamp bracket (3) to the back of the front fascia.
  5. Remove the DRL and the front fog lamp from the front fascia as a unit.
  6. Remove the fasteners (4) securing the front fog lamp bracket to the DRL housing.
  7. Remove the front fog lamp and bracket from the DRL housing.
