Home >> Dodge and Ram >> 2021 >> ProMaster 2500 >> Repair and Diagnosis >> Electrical >> Gauges >> Body - Interior & Exterior >> Doors - Front >> Handle, Interior >> Removal

Handle, Interior: Removal

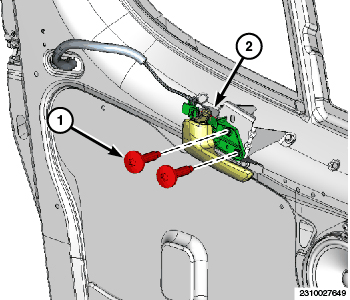

GC0160643Courtesy of CHRYSLER GROUP, LLC
  1. Remove the door trim. Refer to PANEL, DOOR TRIM, REMOVAL .
  2. Remove the fasteners (1) and separate the handle (2) from the door bracket.
    GC0160365Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the release cable (1) from the handle (2).
