Pulley, Idler: Removal: 3.6L

  1. Remove the serpentine belt. Refer to 3.6L

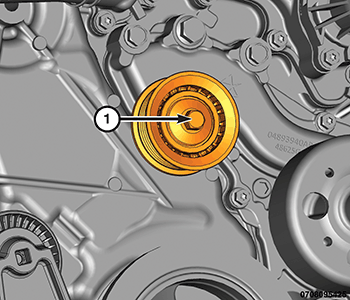

    GC0173660Courtesy of CHRYSLER GROUP, LLC
  2. Remove the bolt (1), and remove the idler pulley.
