Belt, Serpentine: Removal: 3.6L
CAUTION:
Do not let the tensioner arm snapback to the fully extended position, severe damage may occur to the tensioner.
- Disconnect and isolate the negative battery cable.
- Remove the air cleaner body. Refer to REMOVAL

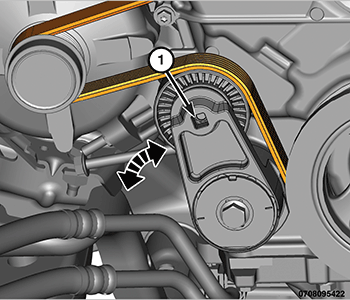

- Rotate the belt tensioner (1) counter clockwise
until it stops.

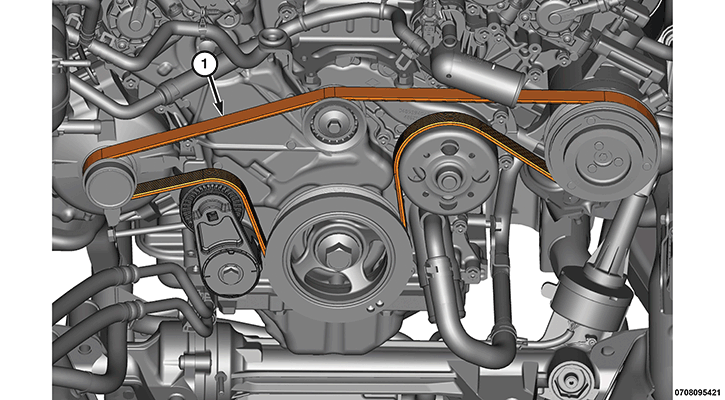

- Remove the belt (1), then slowly rotate the tensioner into the freearm position.
