Tube, Exhaust Gas RECIRCULATION (EGR): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL .

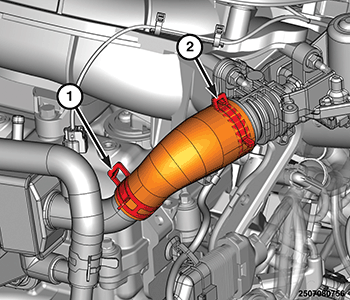

    GC0173668Courtesy of CHRYSLER GROUP, LLC
  2. Remove the EGR crossover tube (1) from the EGR cooler.
  3. Remove the EGR crossover tube (2) from the EGR valve.
