Cover, Engine: Removal

WARNING: This page is about a different variant/trim than selected.

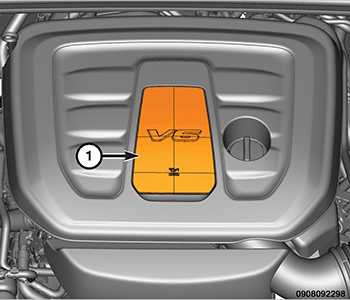

GC0173738Courtesy of CHRYSLER GROUP, LLC
  1. Remove the oil filter access cover (1).

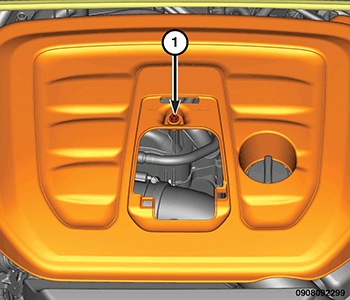

    GC0173658Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine cover fastener (1).

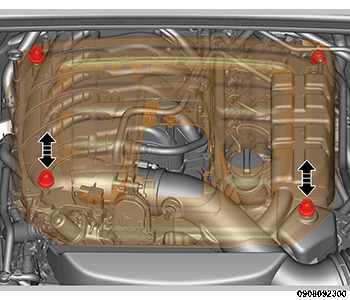

    GC0173546Courtesy of CHRYSLER GROUP, LLC
  3. Gently lift vertically to disengage the engine cover grommets.
  4. Place the engine cover outside of the vehicle in an easy to find location.
    NOTE:

    Place the cover with the appearance surface upward to prevent damage and scratches.
