Insulator, Engine Mount, Rear: Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the skid plate, if equipped. Refer to REMOVAL

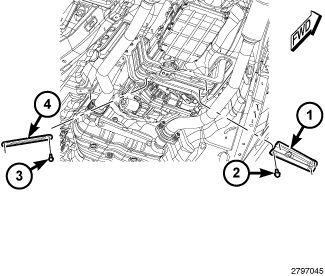

Remove four bolts (2) and the left crossmember brace (1).
Remove two bolts (3) and the right crossmember brace (4).

Courtesy of CHRYSLER GROUP, LLC

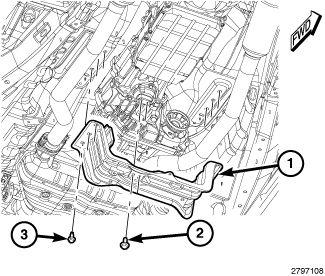

Remove the two bolts (2) from the rear engine mount isolator.
Using a suitable jack stand and a block of wood positioned under the transmission oil pan, raise the transmission until the weight is off of the isolator (approximately 5 mm).
Remove six bolts (3) and the crossmember (1).

Courtesy of CHRYSLER GROUP, LLC

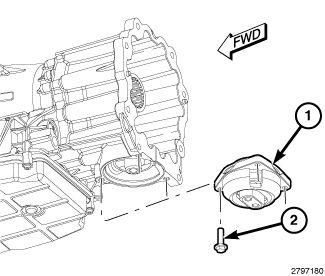

On 4x4 vehicles, remove three bolts (2) and the rear engine mount isolator (1).

Courtesy of CHRYSLER GROUP, LLC

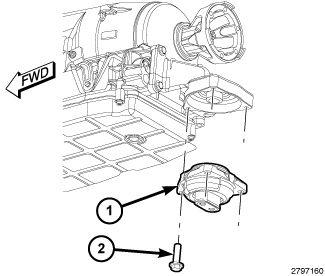

On 4x2 vehicles, remove three bolts (2) and the rear engine mount isolator (1).

Courtesy of CHRYSLER GROUP, LLC
On 4x2 vehicles if required, remove four bolts (1) and the rear engine mount bracket (2).
