Cover(S), Cylinder Head: Removal: Left

WARNING: This page is about a different variant/trim than selected.
NOTE:

The magnetic timing wheels must not come in contact with magnets (pickup tools, trays, ect.) or any other strong magnetic field. This will destroy the timing wheels ability to correctly relay camshaft position to the camshaft position sensor.

  1. Disconnect and isolate the negative battery cable.
  2. Remove the air cleaner body. Refer to REMOVAL
    GC0184456Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the brake booster vacuum hose (1) from the engine cover support bracket.
    GC0184537Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wire harness retainers (1) from the engine cover support bracket.
    GC0184497Courtesy of CHRYSLER GROUP, LLC
  5. Remove the engine cover bracket to cylinder head cover bolts (1) and remove the bracket.
    GC0173796Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the fresh air makeup hose (1) from the rear of the left cylinder head cover.
    GC0173544Courtesy of CHRYSLER GROUP, LLC
  7. Disconnect the wire harness connectors (2) from the variable valve timing solenoids on the left cylinder head cover.
    NOTE:

    Mark the variable valve timing solenoid connectors with a paint pen or equivalent so that they may be reinstalled in their original locations.

  8. Disconnect the coolant temperature sensor wire harness connector (1).
  9. Disengage the wire harness retainers from the left cylinder head cover.
    GC0173747Courtesy of CHRYSLER GROUP, LLC
  10. Mark the variable valve timing solenoids (1 and 2) with a paint pen or equivalent so that they may be reinstalled in their original locations.
  11. Remove the variable valve timing solenoids. Refer to REMOVAL
    GC0173807Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the left Camshaft Position (CMP) sensor (1) wire harness connector.
    GC0173751Courtesy of CHRYSLER GROUP, LLC
  13. Disconnect the Variable Valve Lift (VVL) solenoid wire harness connector (1).
    GC0173758Courtesy of CHRYSLER GROUP, LLC
  14. Disconnect the wire harness connectors from fuel injectors (1) and ignition coils (2).
  15. Remove the wire harness assembly from the left side cylinder head cover and position aside.
    GC0173582Courtesy of CHRYSLER GROUP, LLC
  16. Remove the left side ignition coils (1). Refer to 3.6L
    GC0173538Courtesy of CHRYSLER GROUP, LLC
  17. Remove the camshaft position sensor and fastener (1) from the left cylinder head cover. Refer to 3.6L
    GC0173720Courtesy of CHRYSLER GROUP, LLC
  18. Remove the VVL solenoid and fastener (1) from the left cylinder head cover. Refer to SOLENOID, VARIABLE VALVE LIFT, REMOVAL .

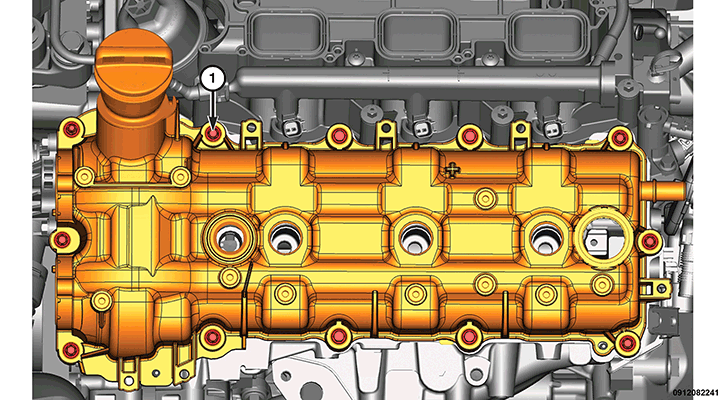

    GC0173540Courtesy of CHRYSLER GROUP, LLC
  19. Loosen ten cylinder head cover mounting fasteners (1) and remove the cylinder head cover.
    GC0173607Courtesy of CHRYSLER GROUP, LLC
  20. Remove and discard the cylinder head cover gasket (1).
  21. The spark plug tube seals (2) can be reused if not damaged.
    CAUTION:

    Do not use oil based liquids, wire brushes, abrasive wheels or metal scrapers to clean the engine gasket surfaces. Use only isopropyl (rubbing) alcohol, along with plastic or wooden scrapers. Improper gasket surface preparation may result in engine fluid leakage.

  22. Remove all residual sealant from the cylinder head, timing chain cover and cylinder head cover mating surfaces. Refer to ENGINE GASKET SURFACE PREPARATION  .
