Cover(S), Cylinder Head: Installation: Left

WARNING: This page is about a different variant/trim than selected.

NOTE:

The magnetic timing wheels must not come in contact with magnets (pickup tools, trays, ect.) or any other strong magnetic field. This will destroy the timing wheels ability to correctly relay camshaft position to the camshaft position sensor.

Courtesy of CHRYSLER GROUP, LLC

Install the NEW cylinder head cover gasket (1).
The spark plug tube seals (2) can be reused if not damaged.
If required, install new spark plug tube seals, in the cylinder head cover.
Clean the timing engine timing cover, cylinder head and cylinder head cover mating surfaces with isopropyl alcohol in preparation for sealant application.
CAUTION:
Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION:
Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

Courtesy of CHRYSLER GROUP, LLC

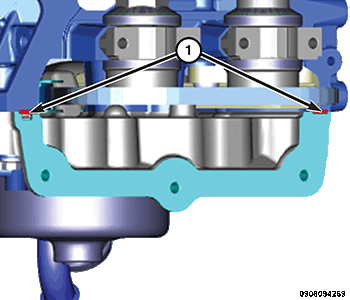

Apply a 11 mm dollop of Mopar® Threebond Engine RTV Sealant to the two engine timing cover to cylinder head T-joints (1).

Courtesy of CHRYSLER GROUP, LLC

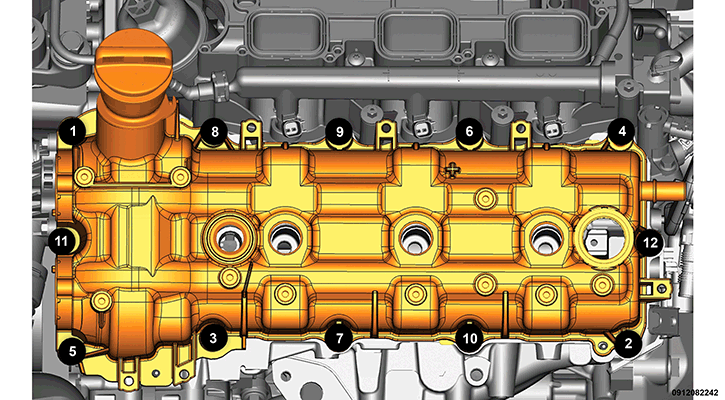

Align the locator pins to the cylinder head and install the cylinder head cover.
Tighten the cylinder head cover bolts and double ended studs in the sequence shown to 12 N.m (106 in. lbs.).

Courtesy of CHRYSLER GROUP, LLC

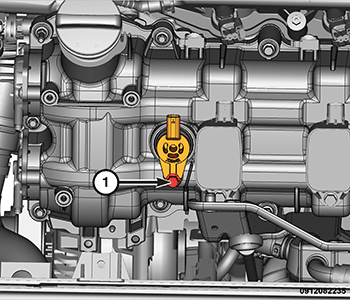

Install the VVL solenoid and fastener (1) into the left cylinder head cover. Refer to SOLENOID, VARIABLE VALVE LIFT, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

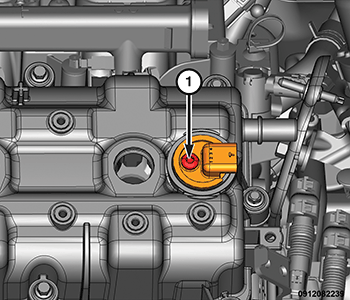

Install the Camshaft Position (CMP) sensor and fastener (1) into the left cylinder head cover. Refer to 3.6L

Courtesy of CHRYSLER GROUP, LLC

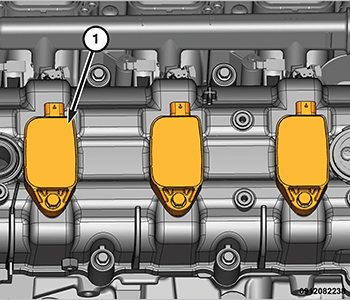

Install the left side ignition coils (1). Refer to 3.6L

Courtesy of CHRYSLER GROUP, LLC
Install the wire harness assembly onto the left side cylinder head cover.

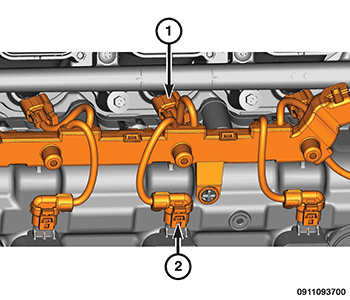

Connect the wire harness connectors to the fuel injectors (1) and ignition coils (2).

Courtesy of CHRYSLER GROUP, LLC

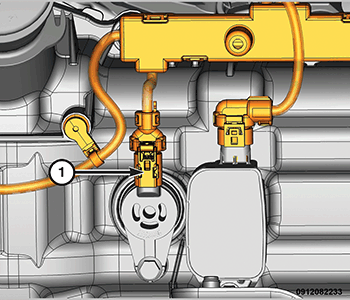

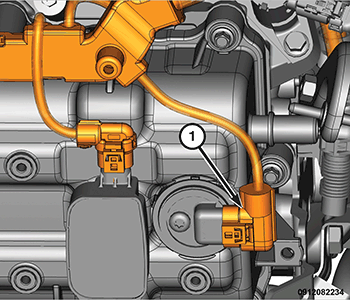

Connect the Variable Valve Lift (VVL) solenoid wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC
Connect the wire harness connector (1) to the left Camshaft Position (CMP) sensor.

Courtesy of CHRYSLER GROUP, LLC

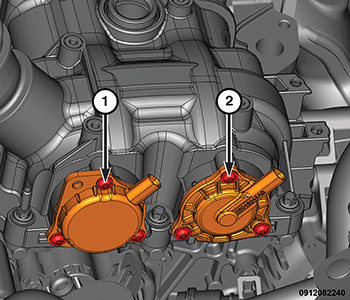

Refer to the markings made at disassembly and install the variable valve timing solenoids (1 and 2) in their original locations. Refer to SOLENOID, VARIABLE VALVE TIMING, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

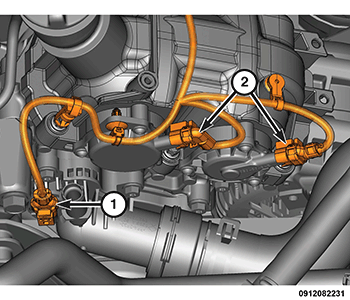

Engage the wire harness retainers to the left cylinder head cover.
Connect the wire harness connectors (2) to the left variable valve timing solenoids.
Connect the wire harness connector to the coolant temperature sensor (1)

Courtesy of CHRYSLER GROUP, LLC

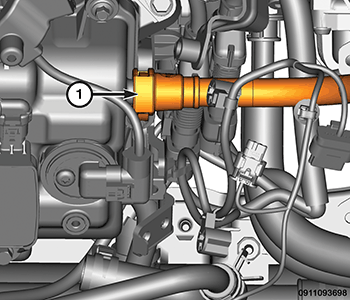

Install the fresh air makeup hose (1).

Courtesy of CHRYSLER GROUP, LLC

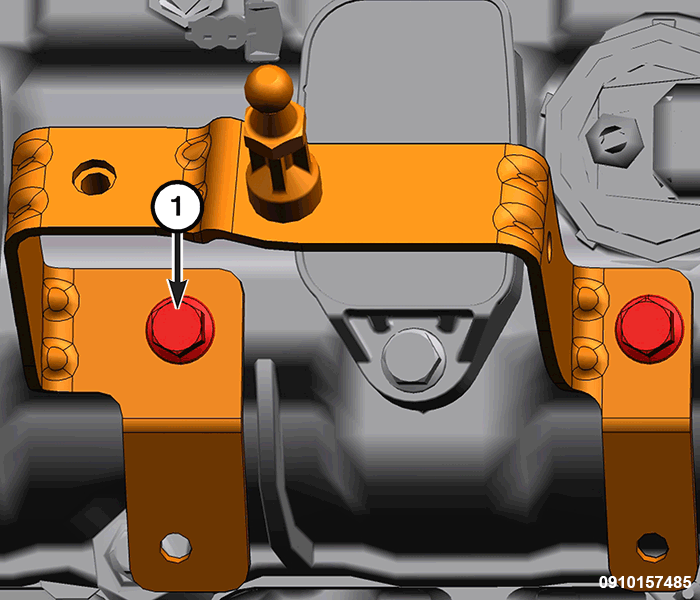

Install the engine cover bracket to cylinder head cover bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

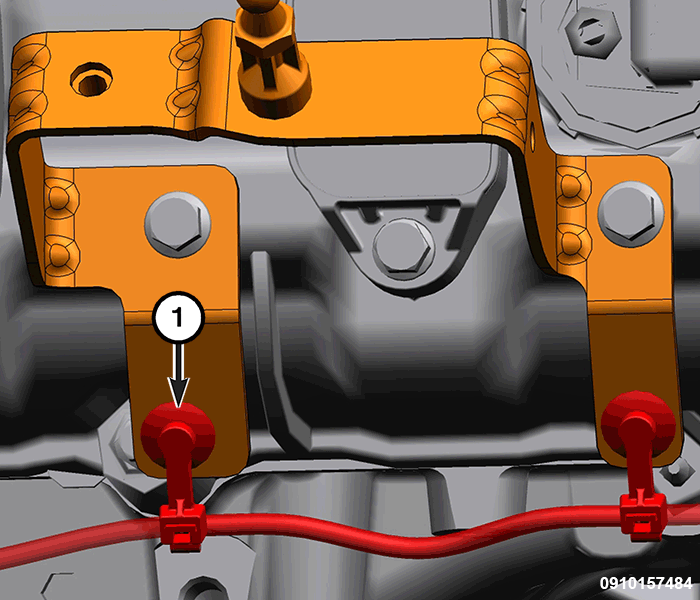

Secure the wire harness retainers (1) to the engine cover support bracket.

Courtesy of CHRYSLER GROUP, LLC

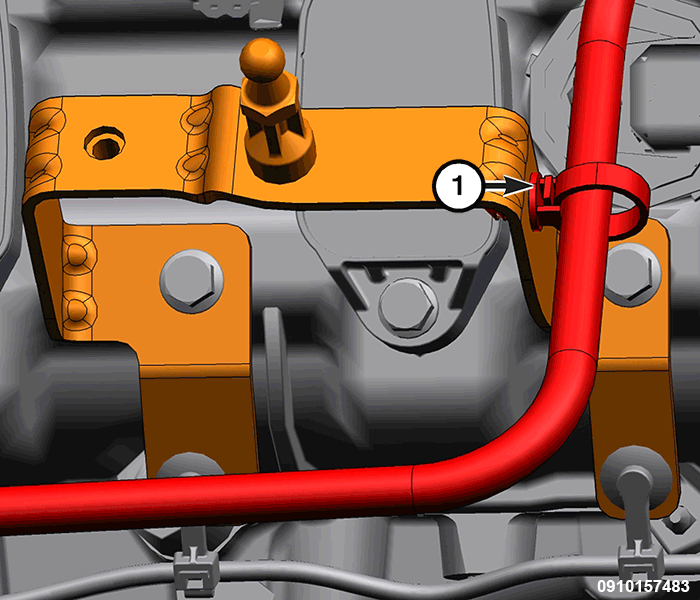

Secure the brake booster vacuum hose (1) to the engine cover support bracket.
Install the air cleaner body. Refer to INSTALLATION
Connect the negative battery cable.

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
