Jet, Piston Oil Cooler: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the oil pan and oil pump pickup tube. Refer to REMOVAL NOTE:
It may be necessary to rotate the engine crankshaft to access the piston oil cooler jet retaining bolts.

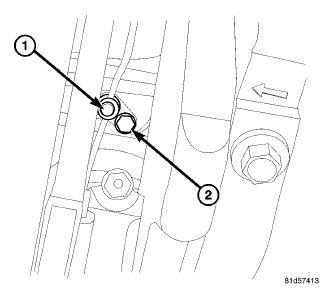

- Remove the piston oil cooler jet retaining bolt (2).
- Remove the piston oil cooler jet (1).
