Engine Block: Crankshaft: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the engine encounters a catastrophic failure, the engine oil cooler and lines must be replaced or damage to the new engine or components could result.

Courtesy of CHRYSLER GROUP, LLC

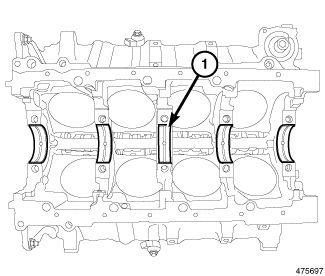

Select the proper main bearings (1). Refer to STANDARD PROCEDURE - CRANKSHAFT MAIN BEARING - FITTING .
Lubricate the main bearing shells with clean engine oil.
Install the main bearings into the engine block.

Courtesy of CHRYSLER GROUP, LLC
Install the main bearing shells (2) into the bearing caps (1).

Courtesy of CHRYSLER GROUP, LLC

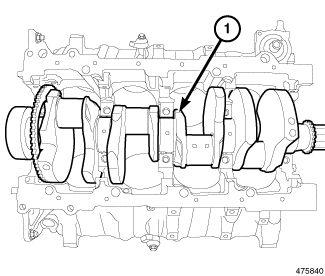

Position the crankshaft (1) into the engine block.

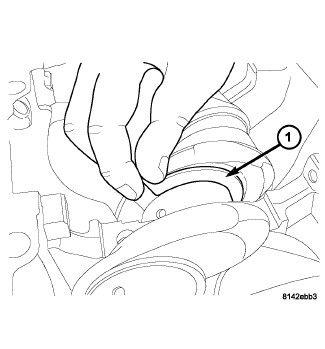

Courtesy of CHRYSLER GROUP, LLC
Lubricate and install the thrust bearings (1).

Courtesy of CHRYSLER GROUP, LLC

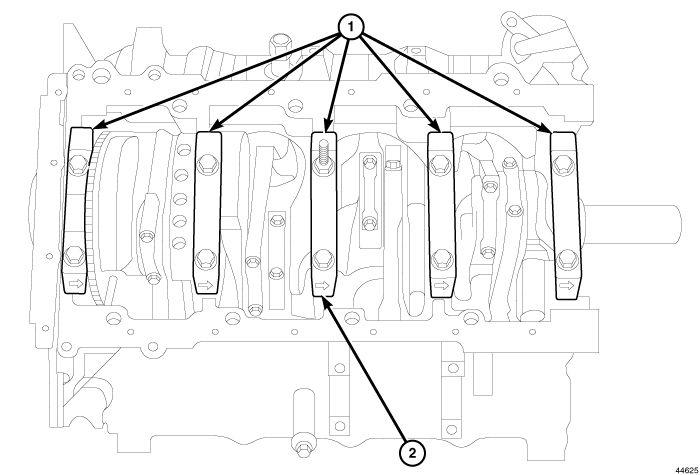

Install all main bearing caps (1) in the location as noted during removal making sure the arrow (2) faces forward.

Fig 1: Oil Main Cap Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Clean and oil all main cap bolts and install finger tight.
Using the sequence shown, tighten the main bearing cap bolts to 13 N.m (10 ft. lbs.).
Again, using the sequence shown, tighten the main bearing cap bolts to 28 N.m (21 ft. lbs.).
Using the sequence shown, rotate the main bearing cap bolts an additional 90°.

Fig 2: Main Bearing Cap Crossbolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The main bearing cap crossbolts are torqued after the final torque of the main cap bolts. Always use a new seal washers on crossbolts.
Install the crossbolts with new seal washers finger tight.
Using the sequence shown, tighten the crossbolts to 31 N.m (23 ft. lbs.).
Again, using the sequence shown, repeat the crossbolt tightening procedure.
Measure the crankshaft end play. Refer to STANDARD PROCEDURE - CRANKSHAFT MAIN BEARING - FITTING .
CAUTION:
The connecting rod bolts must not be reused. Always replace the connecting rod bolts whenever they are loosened or removed.

Courtesy of CHRYSLER GROUP, LLC
Wipe the connecting rod caps clean and install the rod bearings.
Lubricate the bearing surfaces with clean engine oil and install the bearings and connecting rod caps onto the connecting rod journals in the same location as noted during removal.
Lubricate the new connecting rod bolts with clean engine oil and install the bolts finger tight.
Tighten the connecting rod bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

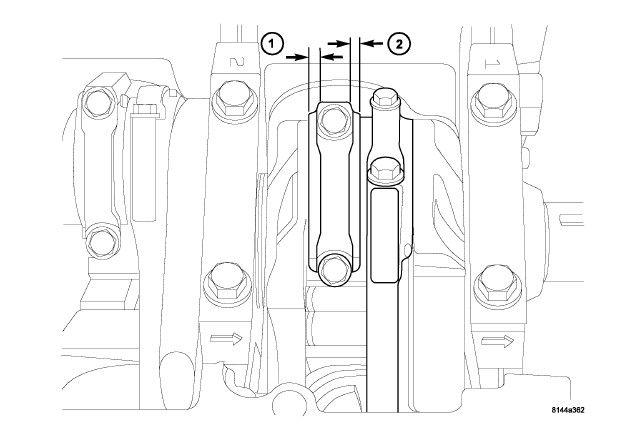

If required, measure the connecting rod side clearance (1, 2). Refer to ENGINE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install the timing chain (5), camshaft phaser (1) and crankshaft sprocket (3). Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION .

Fig 3: Oil Pump Retaining Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Position the oil pump on the crankshaft and install the oil pump retaining bolts finger tight.
Using the sequence shown, tighten the oil pump retaining bolts to 28 N.m (21 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the engine timing cover. Refer to COVER(S), ENGINE TIMING, INSTALLATION .

Fig 4: Crankshaft Rear Oil Seal Retainer Mounting Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC

NOTE:
The crankshaft rear oil seal is integral to the crankshaft rear oil seal retainer and must be replaced as an assembly.

NOTE:
The crankshaft rear oil seal retainer can not be reused after removal.
Thoroughly clean all gasket residue from the engine block.
Position the gasket onto the new crankshaft rear oil seal retainer.
Position the crankshaft rear oil seal retainer onto the engine block.
Using the sequence shown, install the crankshaft rear oil seal retainer mounting bolts and tighten to 15 N.m (11 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the oil pump pickup tube (2) and oil pan. Refer to INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
To prevent severe damage to the crankshaft Damper Installer, thoroughly clean the damper bore and the crankshaft nose before installing damper.
Position the damper on the crankshaft.
CAUTION:
The Damper Installer is assembled in a specific sequence. Failure to assemble this tool in this sequence may result in tool failure and severe damage to either the tool or the crankshaft.
Assemble the Damper Installer (special tool #10387, Installer, Vibration Damper) (2) as follows:
1. Install the nut onto the threaded shaft.
2. Install the roller bearing onto the threaded shaft making sure the hardened bearing surface is facing the nut.
3. Install the pressing cup (2) from the A/C Hub Installer (special tool #6871, Installer, A/C Hub) onto the threaded shaft.
4. Coat the threaded shaft with MOPAR® Nickel Anti-Seize or equivalent.

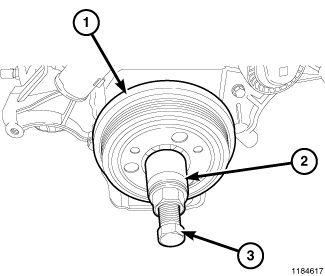

Courtesy of CHRYSLER GROUP, LLC
Using the Damper Installer (special tool #10387, Installer, Vibration Damper) (3) and the pressing cup (2) from A/C Hub Installer (special tool #6871, Installer, A/C Hub), press the crankshaft damper (1) onto the crankshaft.
Install the crankshaft damper bolt and tighten to 176 N.m (129 ft. lbs.).

Fig 5: Flexplate Bolt Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Install the flexplate (1). Refer to FLEXPLATE, INSTALLATION .
Install the engine. Refer to INSTALLATION .
Start the engine and check for leaks.

NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
