Body - Interior & Exterior: Exterior: Grille: Removal

  1. Remove the front fascia assembly. Refer to FASCIA, FRONT, REMOVAL .

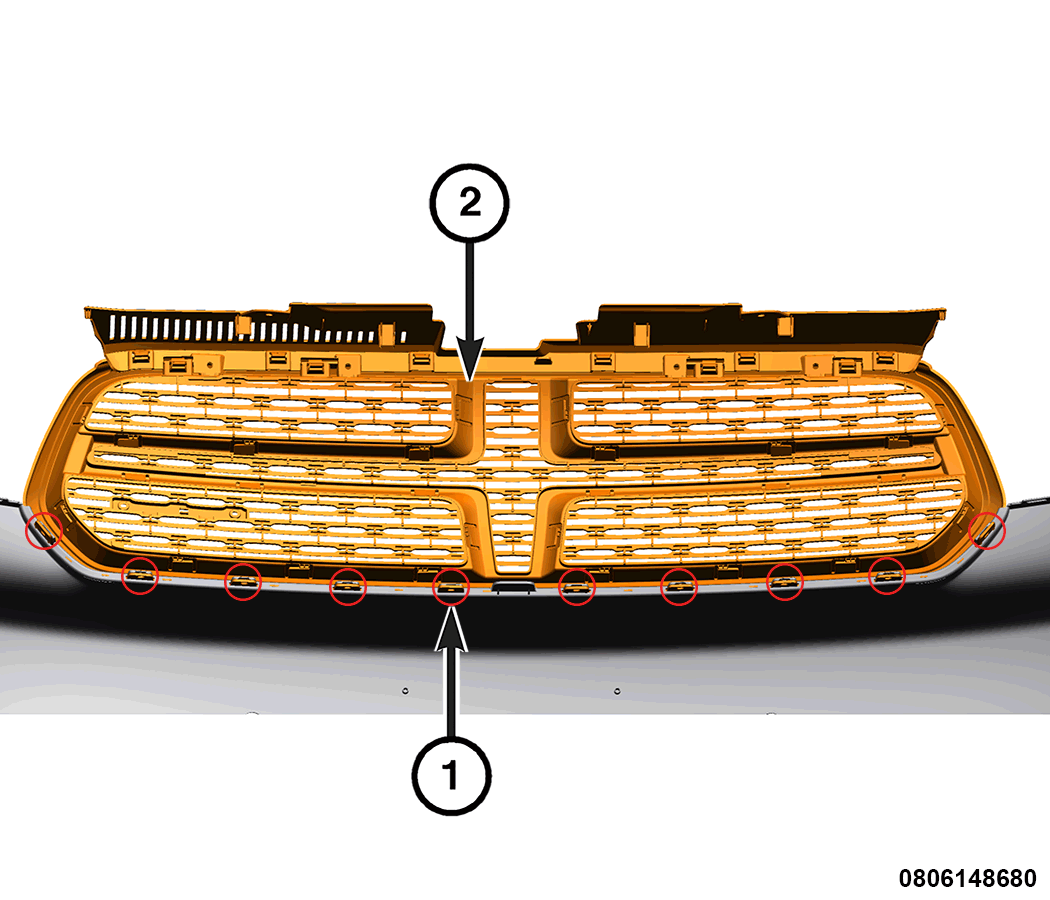

    GC0190464Courtesy of CHRYSLER GROUP, LLC
  2. Remove the ten lower fasteners (1) that secure the radiator grille assembly (2) to the front fascia.
  3. Remove the grille assembly.
