Fascia, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

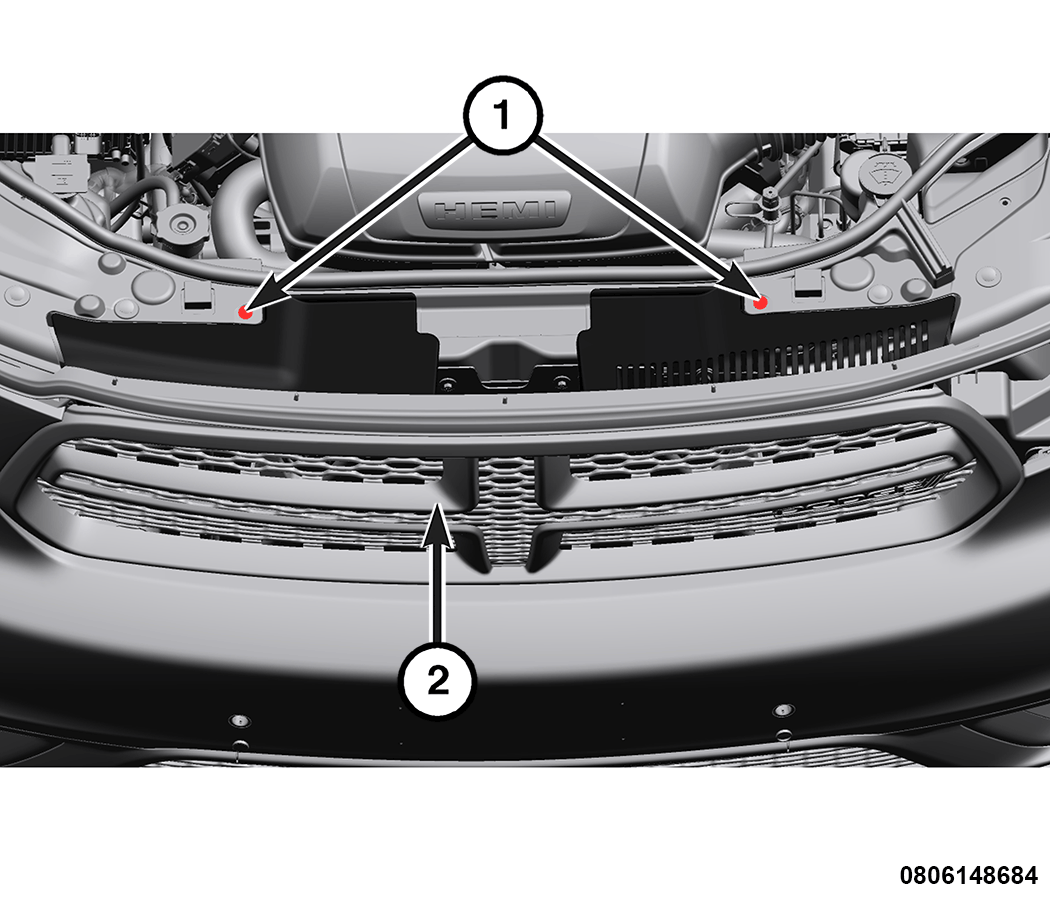

Remove the two plastic retainers (1) at the top of the grille (2).

Courtesy of CHRYSLER GROUP, LLC

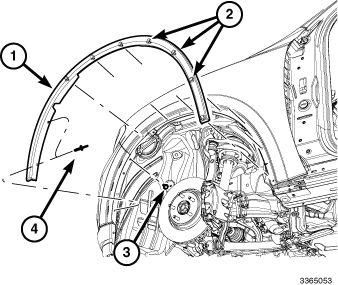

Remove the two plastic rivets (4) that secure the flares (1) to the fascia.
Using Trim Stick (special tool #C-4755, Trim Stick) or equivalent, carefully release the seven clips (2) attaching the flare (1) to the fender and remove the flare.
Remove the fasteners (3) that secure the wheel liners to the fascia.

Courtesy of CHRYSLER GROUP, LLC

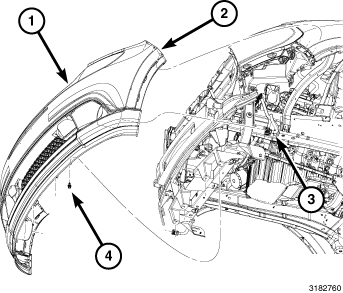

Remove the four lower retainers (4).
Release the integral latches at the wheel well openings (2) and the radiator grille assembly.
Disconnect the wire harness connectors (3), if equipped.
Remove the fascia assembly (1).
