CROSSMEMBER, Cradle, Engine And Suspension: Installation

As necessary;

• Install the frame dampener bolts.
• Install the lower control arms. Refer to ARM, LOWER CONTROL, INSTALLATION .
• Install the front drive axle. Refer to INSTALLATION .
• Install the steering gear. Refer to GEAR, INSTALLATION .
• Install the sway bar. Refer to STABILIZER BAR, FRONT, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

1. Raise the cradle (1) into position guiding the engine mounts into the engine mount brackets.
2. Align the engine cradle to the marks made during removal.
3. Install the brackets (2) and install the four engine cradle support bolts (3).
4. Tighten the four support bolts (3) to 175 Nm (129 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

5. Install and tighten the six cradle stiffener bracket bolts (1) to 20 Nm (15 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

6. Connect the steering gear wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

7. Connect the steering gear wire harness connectors (1).

   Courtesy of CHRYSLER GROUP, LLC

8. Install the driveshaft (1) with reference marks (3) aligned.
   NOTE:

   Clean driveshaft bolts and apply Mopar Lock and Seal Adhesive or equivalent to the threads before installation.

9. Install the driveshaft bolts and tighten to 32 Nm (24 ft. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

10. Support the outside of the lower control arm with a suitable holding fixture, and raise to normal ride height.
11. Tighten the shock clevis bracket to lower control arm nut/bolt (1) to 255 N.m (188 ft. lbs.).

    Courtesy of CHRYSLER GROUP, LLC

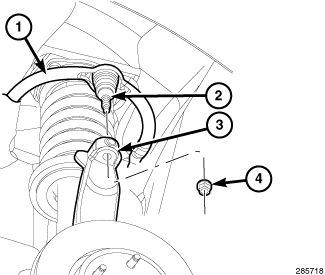

12. Support the outside of the lower control arm with a suitable holding fixture, and raise to position the upper ball joint (2) into the knuckle (3).
13. With the holding fixture holding the suspension at normal ride height, install the upper ball joint nut (4) and tighten to 165 N.m (122 ft. lbs.).

    Courtesy of CHRYSLER GROUP, LLC

CAUTION:

The steering gear must be centered prior to installing the coupler to prevent clockspring damage.

NOTE:

For further information

Refer to CLOCKSPRING, STANDARD PROCEDURE .

15. Connect the steering shaft coupler (2) to the steering shaft, install a NEW  coupler pinch bolt (1) and tighten to 49 N.m (36 ft. lbs.).

    Courtesy of CHRYSLER GROUP, LLC

16. Lower the engine fully onto the engine mounts.

    Courtesy of CHRYSLER GROUP, LLC

17. Tighten the engine mount nuts (2) to 75 N.m (55 ft. lbs.).
18. Install the brake calipers. Refer to CALIPER, DISC BRAKE, INSTALLATION .
19. Install the front wheel speed sensors. Refer to SENSOR, WHEEL SPEED, FRONT, INSTALLATION .
20. Install the transmission skid plate. Refer to
21. Install the front skid plate. Refer to
22. Install the oil control solenoid, if equipped. Refer to SOLENOID, VARIABLE VALVE TIMING (VVTS), EXHAUST, INSTALLATION .
23. Install the throttle body. Refer to THROTTLE BODY, INSTALLATION or refer to THROTTLE BODY, INSTALLATION or refer to THROTTLE BODY, INSTALLATION .
24. Perform wheel alignment, paying special attention to thrust angle. If engine cradle crossmember needs to be shifted to align thrust angle. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
