Linkage, Wiper Arm: Removal

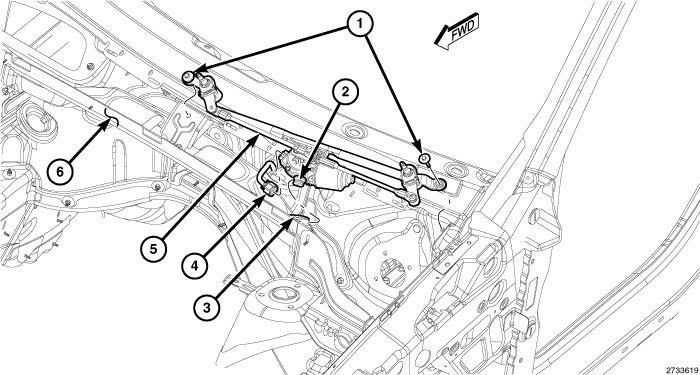

GC0145874Courtesy of CHRYSLER GROUP, LLC
NOTE:

The front wiper motor can be removed from the wiper linkage module and is serviced independently from the remainder of the wiper linkage module for this vehicle. Refer to MOTOR, WIPER, REMOVAL .

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove both front wiper arms from the wiper pivots. Refer to ARM, WIPER, REMOVAL .
  3. Remove the cowl plenum cover/grille panel from over the front wiper module (5). Refer to COVER, COWL PANEL, REMOVAL .
  4. Disconnect the wiper motor wiring harness connector (4).
  5. Remove the Front Wiper Module Mounting Screws (1) securing the module bracket to the cowl plenum.
  6. Pull the front wiper linkage module toward the outboard side of the vehicle far enough to disengage the knob-like rubber isolator (2) from the slotted bracket (3) on the forward wall of the cowl plenum (6).
  7. Remove the front wiper linkage module from the cowl plenum as a unit.
