Cover, Cowl Panel: Removal

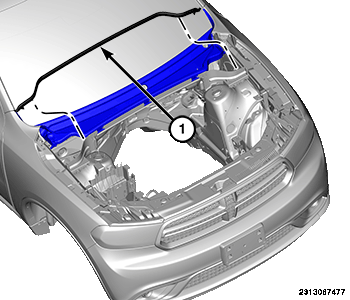

GC0172102Courtesy of CHRYSLER GROUP, LLC
  1. Remove wiper arms. Refer to ARM, WIPER, REMOVAL .
  2. Remove plenum seal (1).
    GC0172098Courtesy of CHRYSLER GROUP, LLC
  3. Release the side tabs (3) and the side seals (2).
  4. Release the front tabs (4) and remove the panel (1).
