Cover, Instrument Panel: Removal
To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
To avoid serious or fatal injury when removing a deployed airbag, rubber gloves, eye protection, and a long-sleeved shirt should be worn. There may be deposits on the airbag unit and other interior surfaces. In large doses, these deposits may cause irritation to the skin and eyes.
To avoid serious or fatal injury, use extreme care to prevent any foreign material from entering the passenger airbag, or becoming entrapped between the passenger airbag cushion and the instrument panel top pad. Failure to observe this warning could result in occupant injuries upon airbag deployment.
- Remove the steering column. Refer to COLUMN, REMOVAL .
- Remove the instrument cluster. Refer to REMOVAL .
- Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .
- Remove the instrument panel center trim bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .
- Remove the radio. Refer to RADIO, REMOVAL .
- Remove the A-pillar trim panels. Refer to PANEL, A-PILLAR TRIM, REMOVAL .
- Remove the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL .
- Remove the cowl trim panels. Refer to PANEL, COWL TRIM, SIDE, REMOVAL .
- Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .
- Remove the passenger silencer panel, under the glove box.

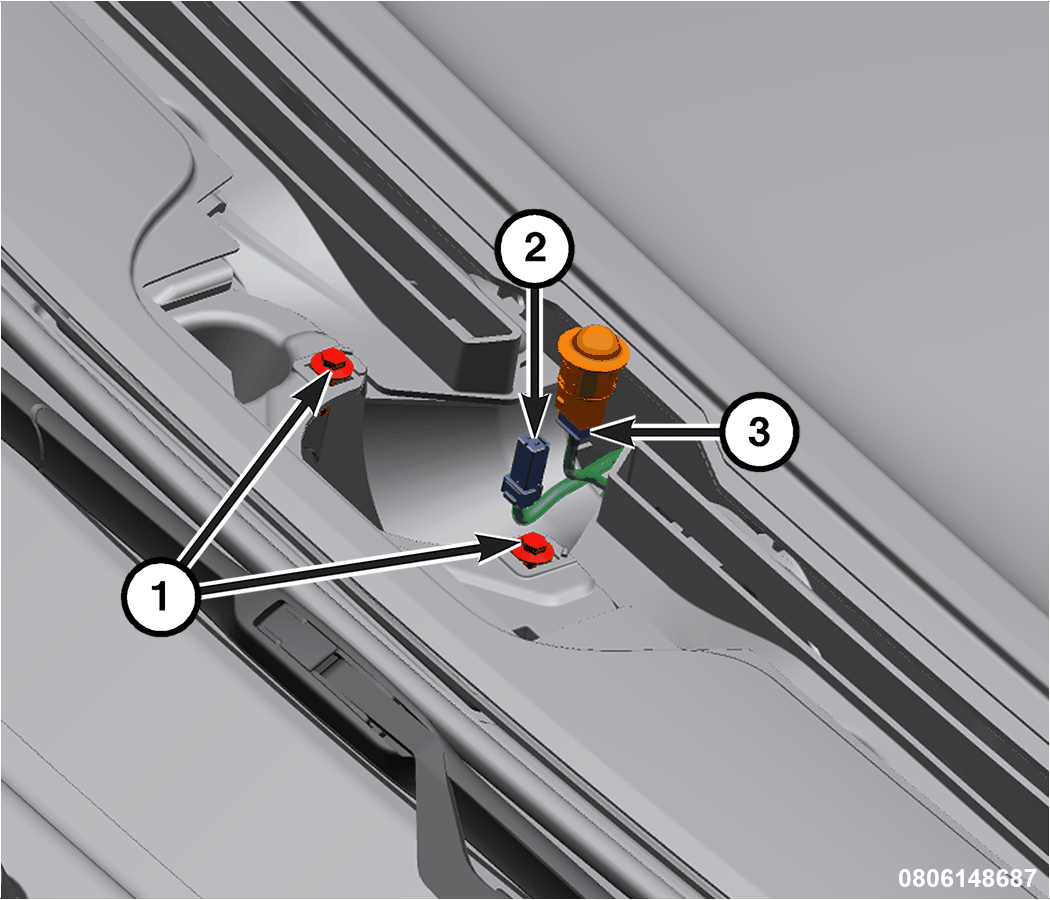

- If equipped with center tweeter, remove the two screws (1) and disconnect the tweeter wire harness connector (2) and remove tweeter.

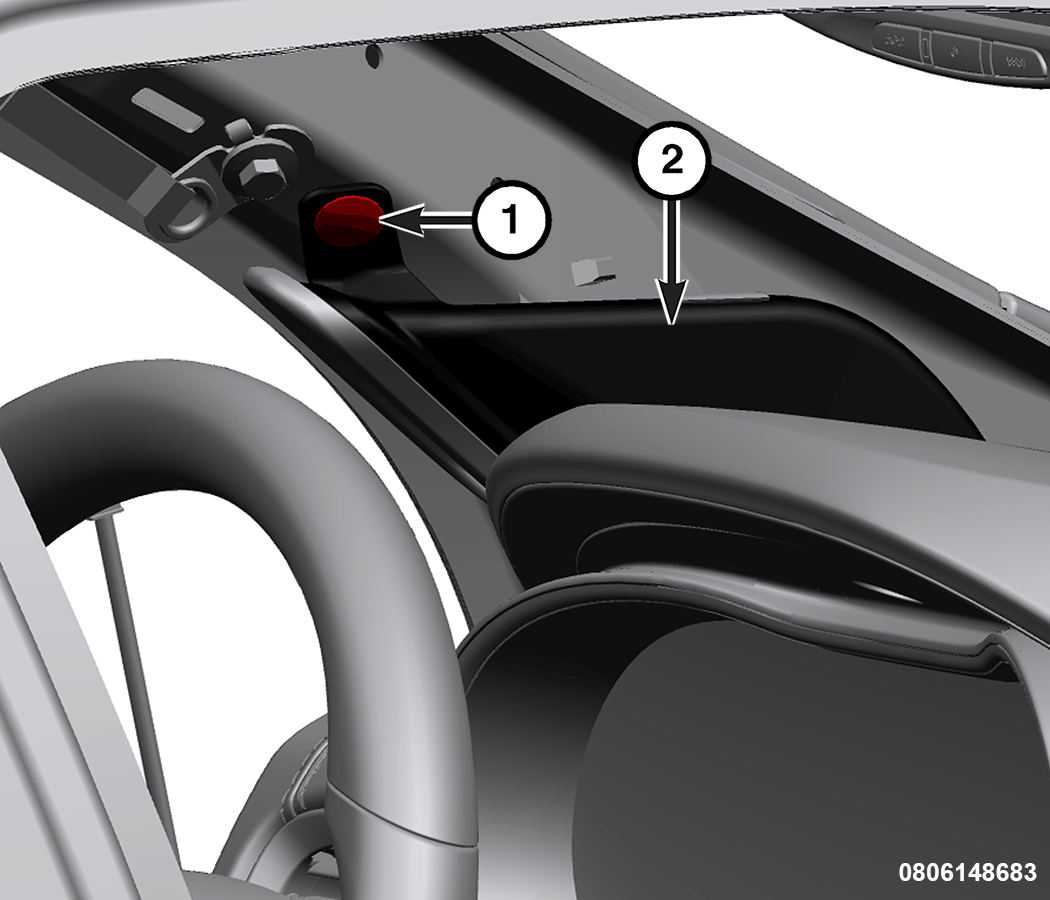

- Remove the retainers that secure the defrost ducts to the A-Pillars.
- Remove the screws (2) on both side of the center trim panel (3).
- Remove the screws (1) and the center trim panel.

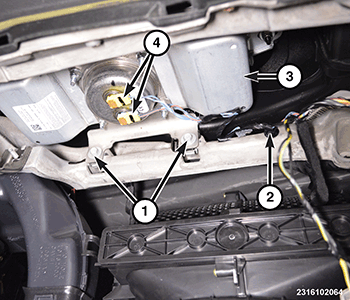

- Disconnect the wire harness connectors (4) from the passenger airbag (3).
- Unclip the passenger air bag wire harness (2) and position aside.
- Remove the passenger airbag bolts (1).

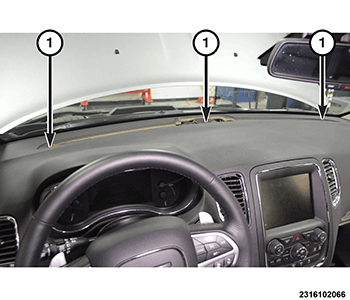

- Remove the three screws (1) at the top of the instrument panel cover.

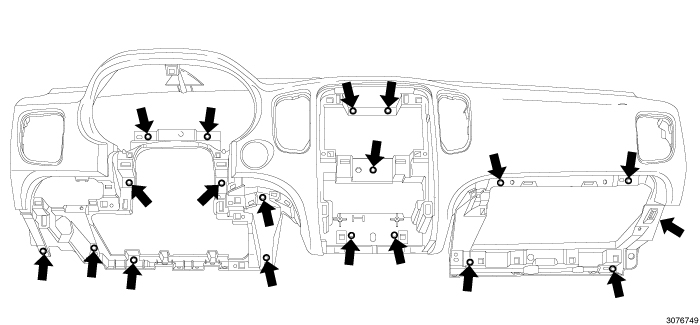

- Remove the instrument panel cover screws and remove the instrument panel cover from the instrument panel reinforcement.
