Home >> Dodge and Ram >> 2019 >> Durango SXT Plus, AWD >> Repair and Diagnosis >> Electrical >> Gauges >> Body - Interior & Exterior >> Instrument Panel >> Grille, Defroster >> Removal

Grille, Defroster: Removal

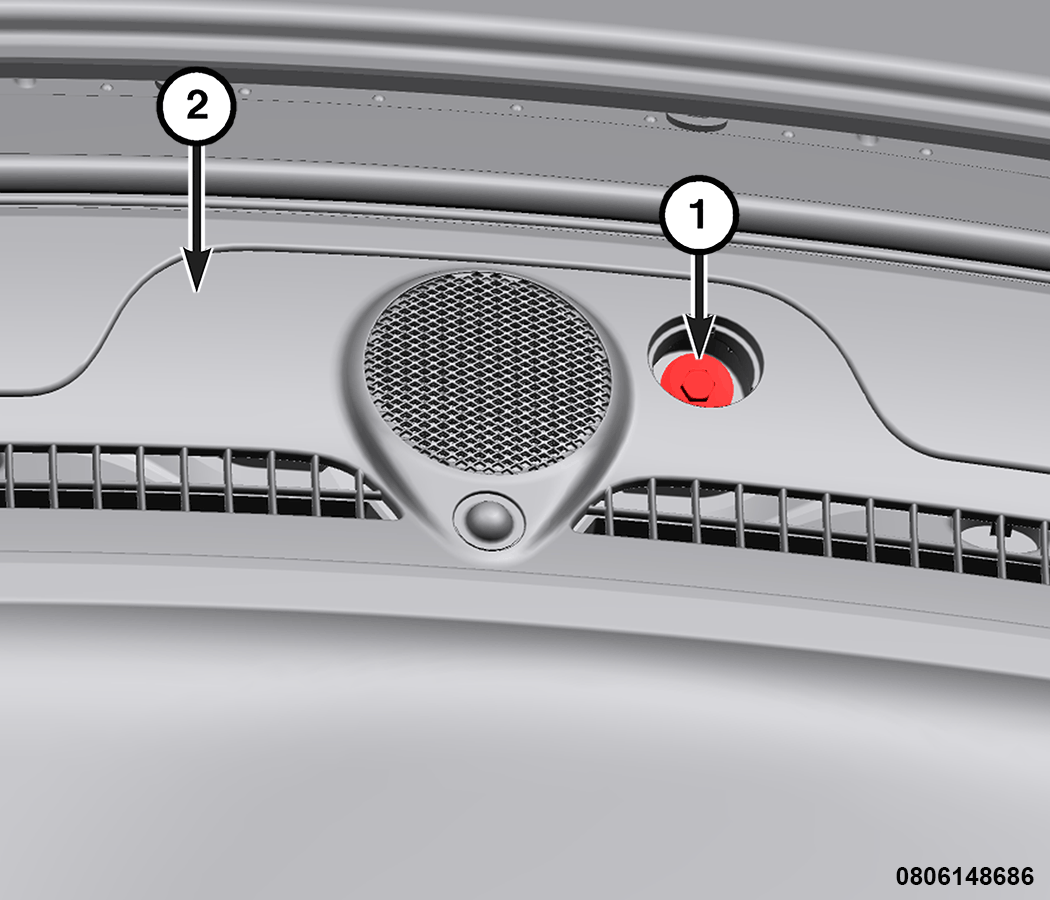

GC0190444Courtesy of CHRYSLER GROUP, LLC
  1. If equipped with center tweeter, remove fastener cover and remove fastener (1) from defroster grille.

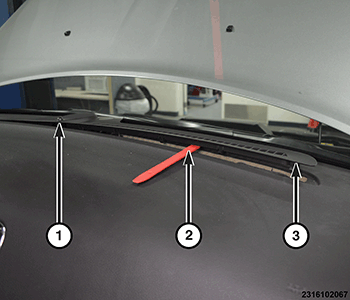

    GC0173703Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick (2), starting at the outboard edge lift the defroster grill (3).
  3. Disconnect the wire harness connector (1) and remove the defroster grill.
