Panel, Quarter Trim: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the load floor. Refer to LOAD FLOOR, FOOTWELL, REMOVAL .
Remove the D-pillar trim. Refer to PANEL, D-PILLAR TRIM, REMOVAL .
Remove the rear door scuff plate. Refer to PLATE, SCUFF, LIFTGATE, REMOVAL .

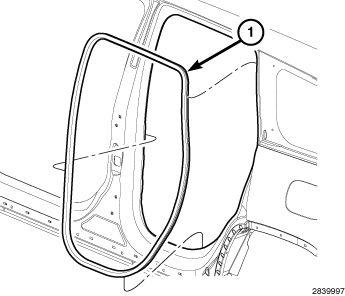

Position the door seal (1) aside.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Right side shown in illustration, left side similar.

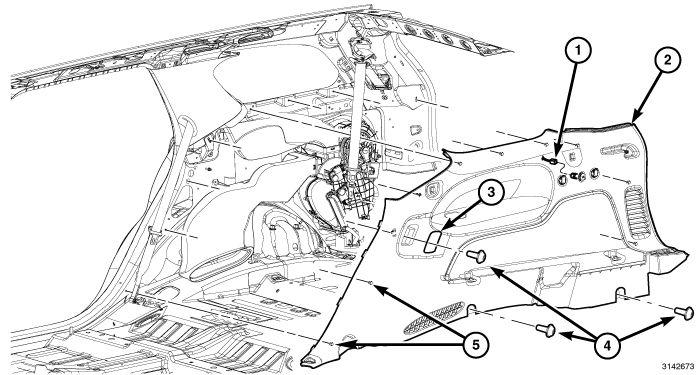

Using a small flat bladed tool or equivalent, remove and discard the screw cap (3).
Remove the screws (4).
Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the retaining fasteners (5) that secure the quarter trim panel to the quarter panel.
Pull the quarter trim panel away from the quarter panel.
If equipped, disconnect the power outlet wire harness connector (1).
Remove the quarter trim panel (2).
