Panel, D-Pillar Trim: Removal

GC0145459Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear header trim panel (3). Refer to PANEL, HEADER, REAR, REMOVAL .

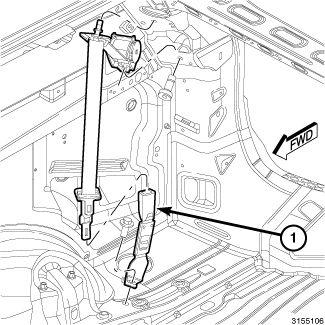

    GC0145549Courtesy of CHRYSLER GROUP, LLC
  2. Disengage the third row seat belt lower anchor latch plate from the lower anchor buckle (1).

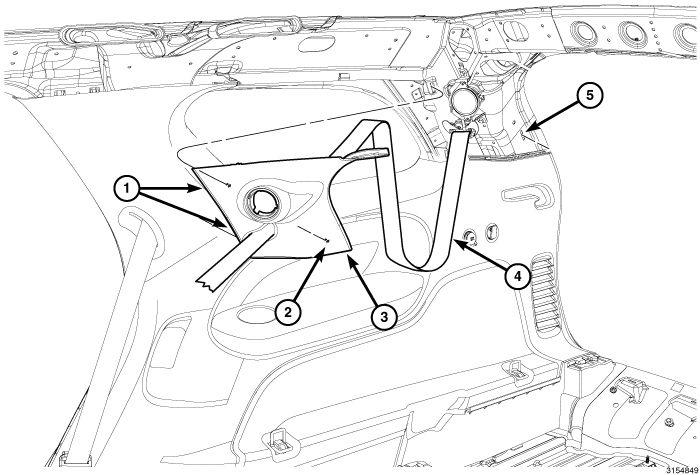

    GC0145548Courtesy of CHRYSLER GROUP, LLC
  3. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, release the retaining clips (2) and separate the trim (3) from the pillar.
  4. Separate the seat belt (4) from the trim.
  5. Release the tether from the pillar (5) and remove the trim.
